Stock:
Distributor: 156
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 122.16000 | ₹ 122.16 |
| 150 | ₹ 105.59000 | ₹ 15,838.50 |
| 400 | ₹ 100.48000 | ₹ 40,192.00 |
| 750 | ₹ 97.35000 | ₹ 73,012.50 |
| 1450 | ₹ 94.39000 | ₹ 1,36,865.50 |

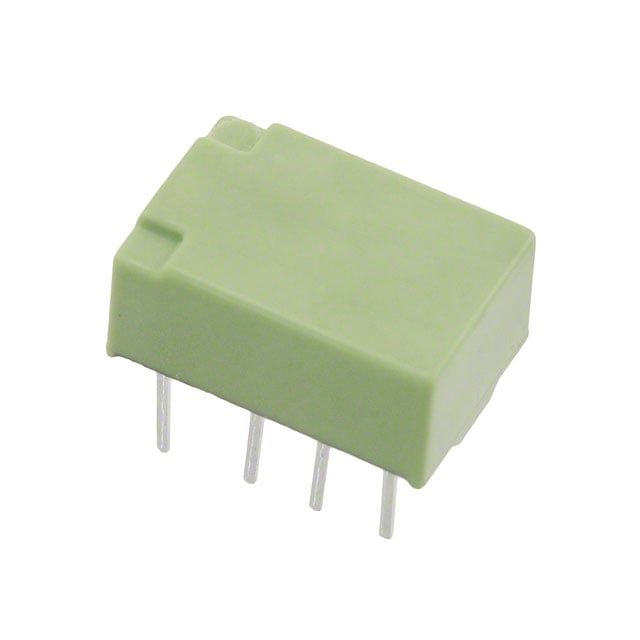

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | AGQ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 4.5VDC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 2 A | |
| Switch Rated Volts | 125VAC, 110VDC - Max | |
| Maximum Switch Load | 37.5VA, 60W | |
| Electromagnet Amp Draw | 31 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | 3.38 VDC | |
| Release Voltage Level | 0.45 VDC | |
| Activation Response Time | 4 ms | |
| Reset Response Duration | 4 ms | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Pin Alloy Composition | Silver Palladium (AgPd), Gold (Au) | |
| Certification Body | BSI, cURus | |
| Electromechanical Relay Style | Telecom | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as BSI, cURus. Supports coil current measured at 31 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 4.5VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Palladium (AgPd), Gold (Au). Supports a contact current rating of 2 A. The maximum switching load 37.5VA, 60W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 3.38 VDC for effective activation. Requires a release voltage of 0.45 VDC for reliable functioning. Time duration 4 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay Telecom for controlling electrical circuits. Duration required 4 ms for reset and reaction. Classification series for the product or component AGQ. The switch's voltage specification 125VAC, 110VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
