Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5010 | ₹ 177.30000 | ₹ 8,88,273.00 |
| 1020 | ₹ 192.13000 | ₹ 1,95,972.60 |
| 510 | ₹ 198.96000 | ₹ 1,01,469.60 |
| 270 | ₹ 205.44000 | ₹ 55,468.80 |
| 120 | ₹ 214.00000 | ₹ 25,680.00 |
| 60 | ₹ 221.60000 | ₹ 13,296.00 |
| 30 | ₹ 229.46000 | ₹ 6,883.80 |
| 10 | ₹ 242.51000 | ₹ 2,425.10 |
| 1 | ₹ 272.22000 | ₹ 272.22 |

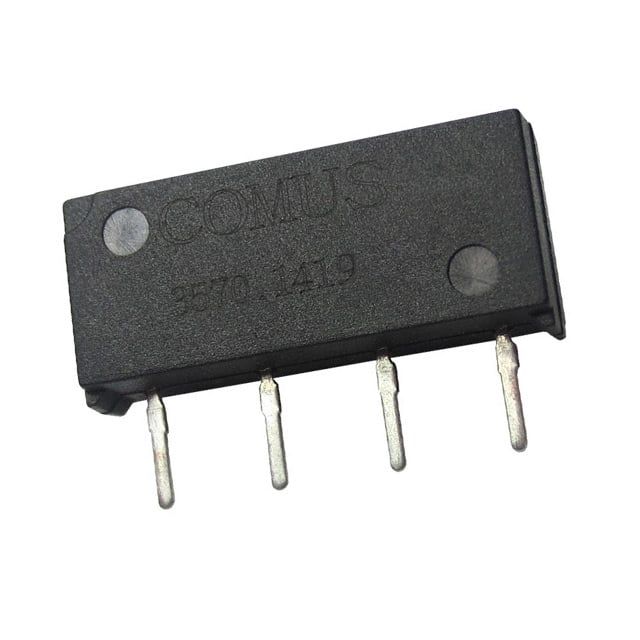

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3570 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 5VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 1 A | |
| Switch Rated Volts | 200VDC - Max | |
| Electromagnet Amp Draw | 10 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Minimum Activation Volts | 3.75 VDC | |
| Release Voltage Level | 0.4 VDC | |
| Activation Response Time | 0.35 ms | |
| Reset Response Duration | 0.1 ms | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Pin Alloy Composition | - |
Description
Supports coil current measured at 10 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 5VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 1 A. Mounting configuration Through Hole for structural stability. Needs a voltage of 3.75 VDC for effective activation. Requires a release voltage of 0.4 VDC for reliable functioning. Time duration 0.35 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 0.1 ms for reset and reaction. Classification series for the product or component 3570. The switch's voltage specification 200VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
