8 Results

Manufacturer

CELDUC RELAIS

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Attachment Mounting Style	Inductor Operating Volts	Switch Contact Layout	Pin Ampere Capacity	Switch Rated Volts	Electromagnet Amp Draw	Electromagnetic Coil Design	Key Product Highlights	Lead Termination Type	Sealing Protection Grade	Minimum Activation Volts	Release Voltage Level	Activation Response Time	Reset Response Duration	Ambient Temp Range	Pin Alloy Composition

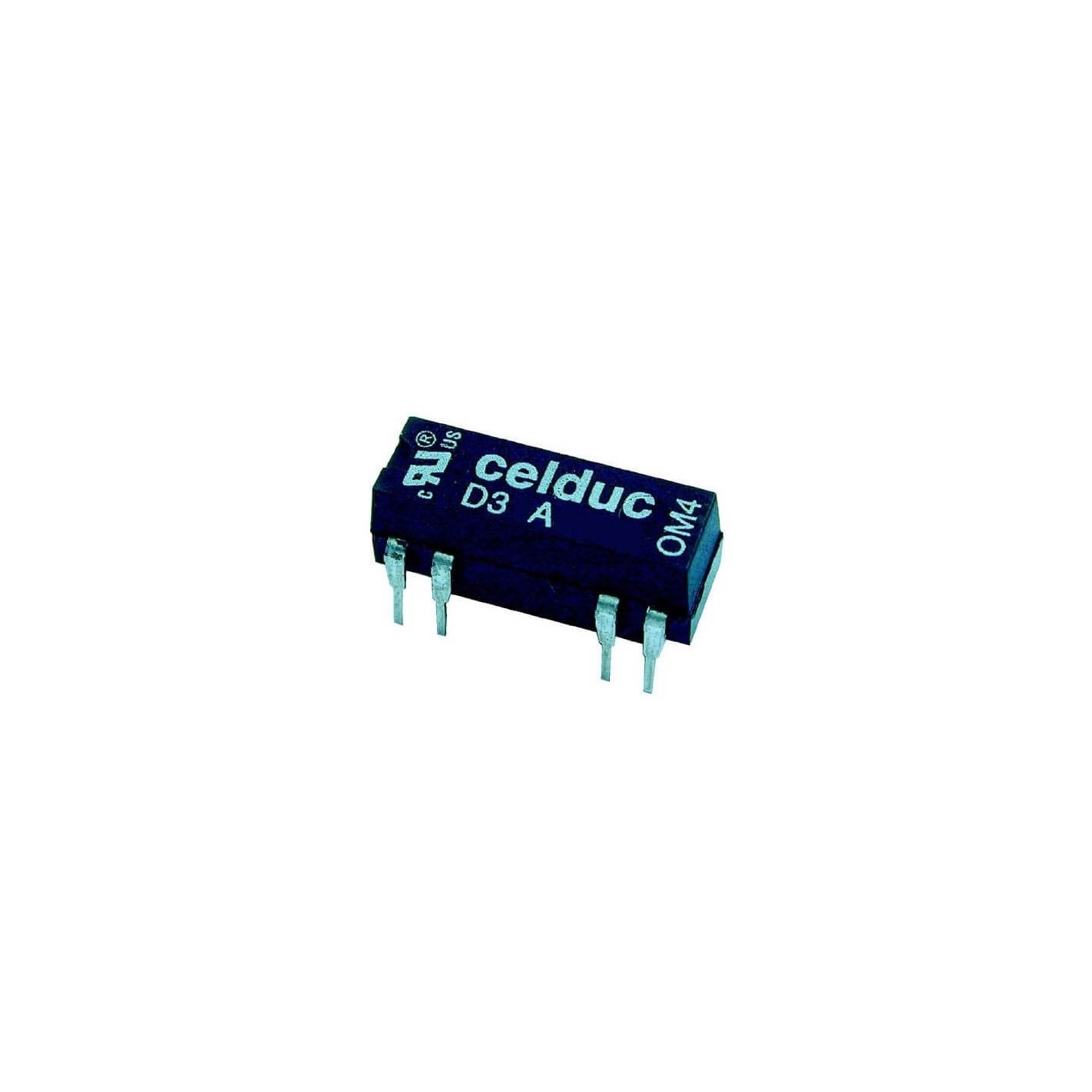

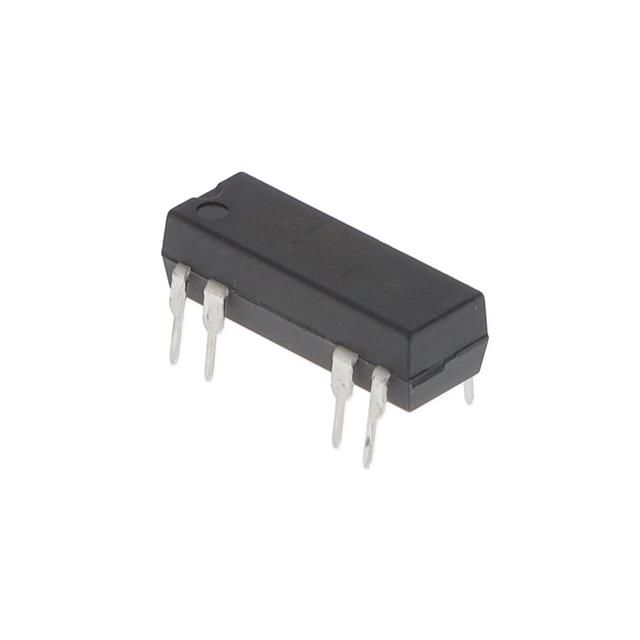

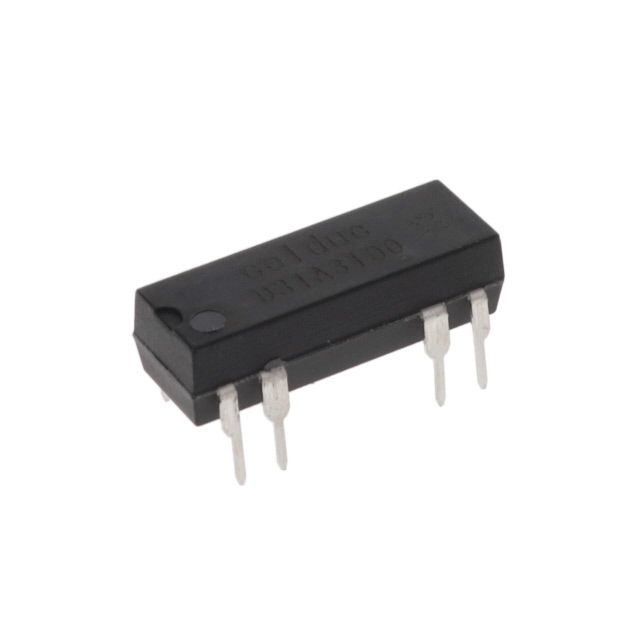

D31A3100 CELDUC RELAIS	CELDUC RELAIS	₹371.31	-	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	100VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.8 VDC	1 ms	50 µs	-40°C ~ 70°C	Rhodium (Rh)
D31A7100 CELDUC RELAIS	CELDUC RELAIS	₹366.95	-	Tube	Active	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	100VDC - Max	11.2 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	1 ms	50 µs	-40°C ~ 70°C	Rhodium (Rh)
D32A3110 CELDUC RELAIS	CELDUC RELAIS	₹958.73	-	Tray	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	100VDC - Max	35.7 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.8 VDC	1 ms	50 µs	-40°C ~ 70°C	Rhodium (Rh)
D31A5100 CELDUC RELAIS	CELDUC RELAIS	₹246.15	-	Tray	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	100VDC - Max	12 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	1 ms	50 µs	-40°C ~ 70°C	Rhodium (Rh)
D71A2100 CELDUC RELAIS	CELDUC RELAIS	₹420.49	-	Tray	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	100VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.8 VDC	1 ms	50 µs	-40°C ~ 85°C	Rhodium (Rh)
D31B3100 CELDUC RELAIS	CELDUC RELAIS	₹938.24	-	Tray	Active	Through Hole	5VDC	SPST-NC (1 Form B)	500 mA	100VDC - Max	10 mA	Non Latching	-	PC Pin	-	4.2 VDC	0.6 VDC	1 ms	50 µs	-40°C ~ 70°C	Rhodium (Rh)
D31C7100 CELDUC RELAIS	CELDUC RELAIS	₹859.35	-	Tray	Active	Through Hole	24VDC	SPDT (1 Form C)	250 mA	100VDC - Max	11.2 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	1.5 ms	2 ms	-40°C ~ 70°C	Rhodium (Rh)
D31C5100 CELDUC RELAIS	CELDUC RELAIS	₹1,007.88	-	Tray	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	100VDC - Max	24 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	1.5 ms	2 ms	-40°C ~ 70°C	Rhodium (Rh)
