Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TLP222A-2 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Surface Mount | |
| Electrical Pathway | SPST-NO (1 Form A) x 2 | |
| Exit Signal Category | AC, DC | |
| Supply Input Volts | 1.15VDC | |
| Output Load Voltage | 0 V ~ 60 V | |
| Device Load Amperage | 500 mA | |
| Maximum On Resistance | 2 Ohms | |
| Lead Termination Type | Gull Wing | |
| Ambient Temp Range | -40°C ~ 85°C | |

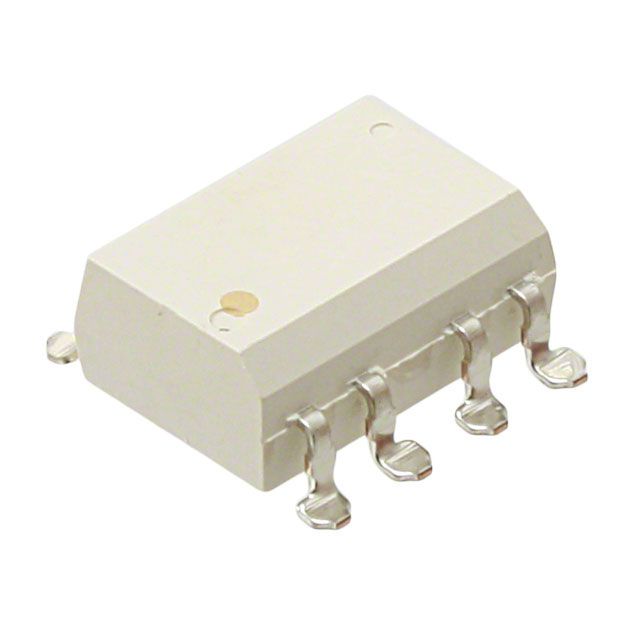

| Component Housing Style | 8-SMD, Gull Wing | |
| Vendor Package Type | 8-SMD | |
| Certification Body | cUL, UL | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as cUL, UL. Configured for circuit type described as SPST-NO (1 Form A) x 2. The input voltage established at 1.15VDC for reliable performance. Designated load current 500 mA for efficient power management. Mounting configuration Surface Mount for structural stability. Resistance during the on-state 2 Ohms for effective conduction. Peak resistance in the on-state 2 Ohms for electrical efficiency. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type AC, DC for ensuring compatibility with output systems. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 8-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 8-SMD that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component TLP222A-2. Supplier package type 8-SMD for component selection. Current supply level 1.15VDC for electrical parameters. Type of termination Gull Wing for connector or device. Input voltage 1.15VDC required for devices. Load voltage 0 V ~ 60 V required for devices.
