Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 15.93000 | ₹ 95,580.00 |
| 12000 | ₹ 14.69000 | ₹ 1,76,280.00 |
Stock:
Distributor: 112
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 22.07000 | ₹ 1,32,420.00 |
Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 37.95000 | ₹ 2,27,700.00 |
| 30000 | ₹ 33.21000 | ₹ 9,96,300.00 |
| 60000 | ₹ 27.51000 | ₹ 16,50,600.00 |

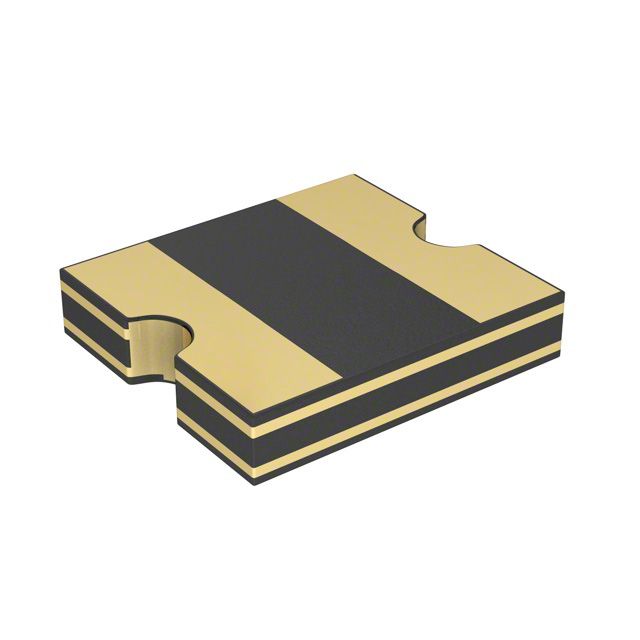

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | Multifuse®, MF-SMDF | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Polymeric | |
| Peak Voltage Tolerance | 60V | |
| Maximum Holding Current | 550 mA | |
| Trip Threshold Current | 1.2 A | |
| Maximum Amp Rating | 10 A | |
| Fault Trip Duration | 3 s | |
| Minimum Initial Resistance | 200 mOhms | |
| Max Post-Trip Resistance | 1 Ohms | |
| Typical Resistance at 25C | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2018 (5045 Metric), Concave | |
| Package Size Specs | 0.200" L x 0.180" W (5.08mm x 4.58mm) | |
| Maximum Mounted Height | - | |
| Maximum Thickness Limit | 0.043" (1.09mm) | |
| Pin Lead Gap | - |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Indicates the maximum holding current recorded at 550 mA. Indicates the maximum allowable current rating at 10 A. Delivers trip current recorded at 1.2 A. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2018 (5045 Metric), Concave that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. The baseline initial resistance (Ri) 200 mOhms established for evaluating performance. The highest post-trip resistance (R1) 1 Ohms designed to safeguard the circuit. Classification series for the product or component Multifuse®, MF-SMDF. Details on package size 0.200" L x 0.180" W (5.08mm x 4.58mm) for electrical or mechanical components. Measurement dimensions 0.200" L x 0.180" W (5.08mm x 4.58mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. The highest permissible thickness 0.043" (1.09mm) according to specification standards. Time required to trip 3 s for safety systems. Type classification Polymeric for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The maximum voltage 60V specified by the device.
