Home Products Fuses Tvs Diodes And Surge Protectors Resettable Ptc Fuses

Stocking Options

In Stock

Environmental Options

RoHS Compliant Non-RoHS Compliant

Media

Datasheet

19 Results

Manufacturer

BELDEN INC

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Device Type Classification	Peak Voltage Tolerance	Maximum Holding Current	Trip Threshold Current	Maximum Amp Rating	Fault Trip Duration	Minimum Initial Resistance	Max Post-Trip Resistance	Typical Resistance at 25C	Ambient Temp Range	Quality Grade Level	Certification Qualification	Performance Rating Specs	Attachment Mounting Style	Component Housing Style	Package Size Specs	Maximum Mounted Height	Maximum Thickness Limit	Pin Lead Gap
0ZRN0450FF1E BELDEN INC	BELDEN INC	₹23.91	0ZRN	Bulk	Active	Polymeric	16V	4.5 A	7.8 A	100 A	3 s	22 mOhms	54 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.409" L x 0.118" W (10.40mm x 3.00mm)	0.614" (15.60mm)	-	0.201" (5.10mm)

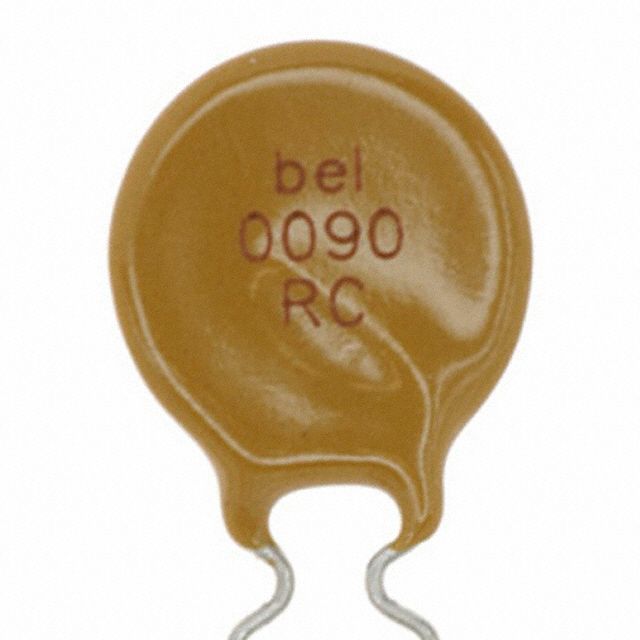

0ZRC0090FF1E BELDEN INC	BELDEN INC	₹9.05	0ZRC	Box	Active	Polymeric	90V	900 mA	1.8 A	40 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.461" L x 0.122" W (11.70mm x 3.10mm)	0.622" (15.80mm)	-	0.201" (5.10mm)

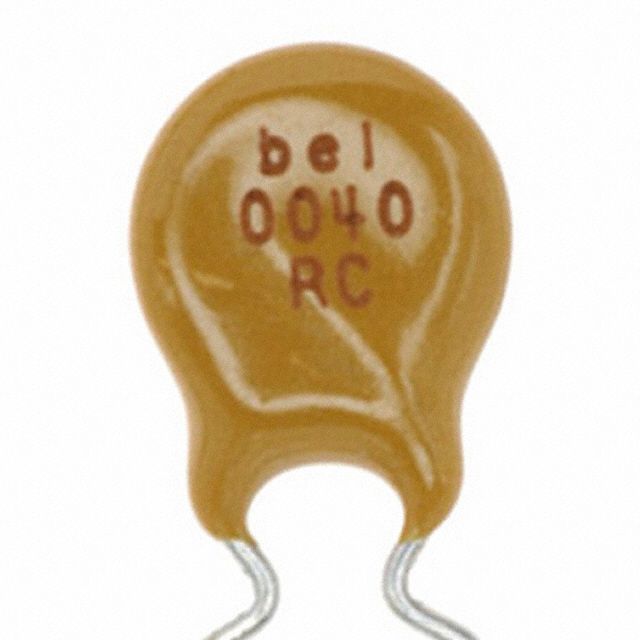

0ZRC0040FF1E BELDEN INC	BELDEN INC	₹10.39	0ZRC	Box	Active	Polymeric	90V	400 mA	800 mA	40 A	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.299" L x 0.122" W (7.60mm x 3.10mm)	0.532" (13.50mm)	-	0.201" (5.10mm)

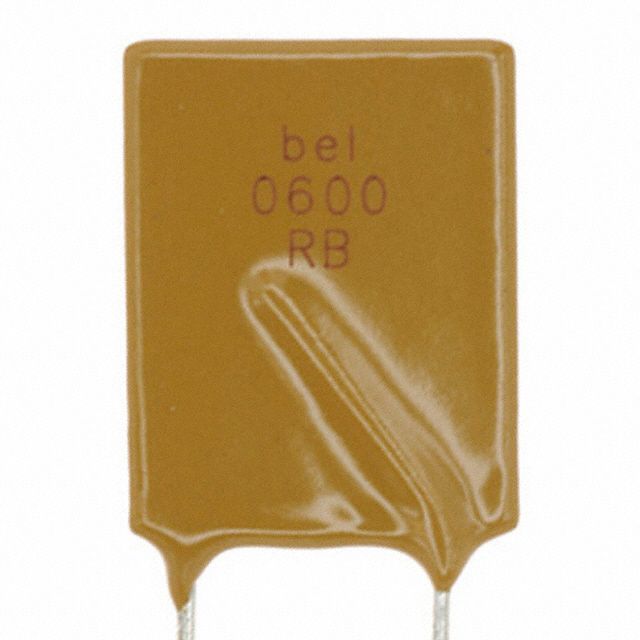

0ZRB0600FF1A BELDEN INC	BELDEN INC	₹14.28	0ZRB	Box	Active	Polymeric	30V	6 A	12 A	40 A	16 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.980" (24.90mm)	-	0.402" (10.20mm)

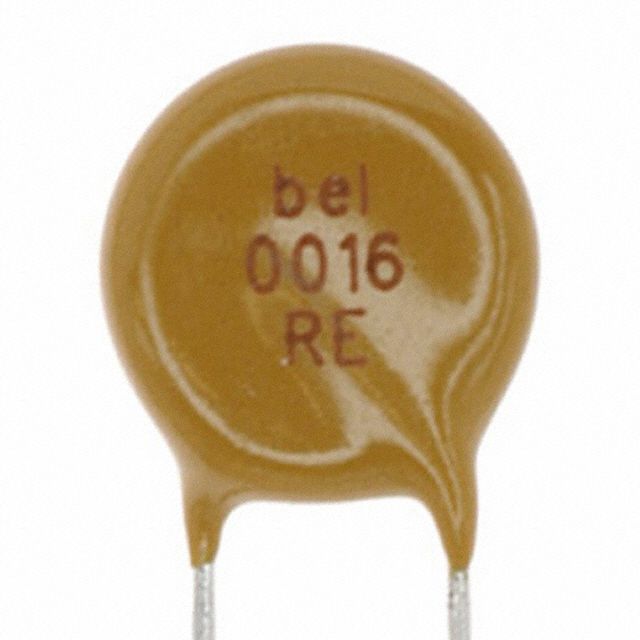

0ZRE0016FF1C BELDEN INC	BELDEN INC	₹16.64	0ZRE	Box	Active	Polymeric	240V	160 mA	370 mA	2 A	15 s	2.5 Ohms	7.8 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.390" L x 0.150" W (9.90mm x 3.80mm)	0.492" (12.50mm)	-	0.201" (5.10mm)

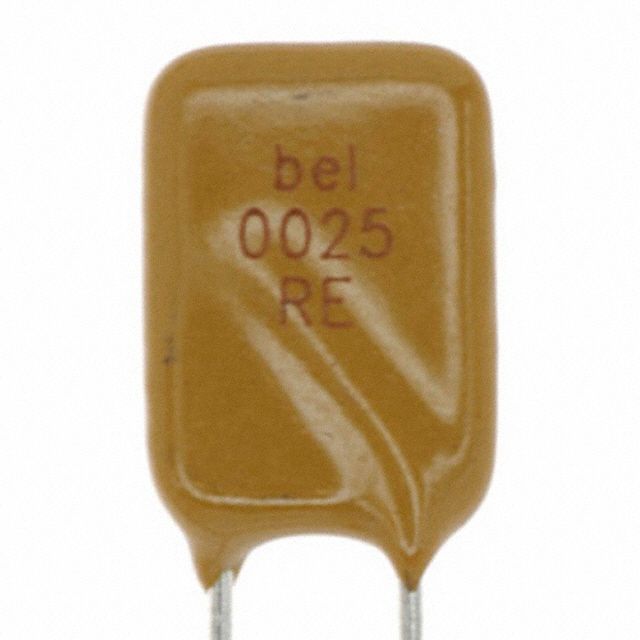

0ZRE0025FF1E BELDEN INC	BELDEN INC	₹17.53	0ZRE	Box	Active	Polymeric	240V	250 mA	560 mA	6 A	18.5 s	1.3 Ohms	3.8 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.378" L x 0.150" W (9.60mm x 3.80mm)	0.685" (17.40mm)	-	0.201" (5.10mm)

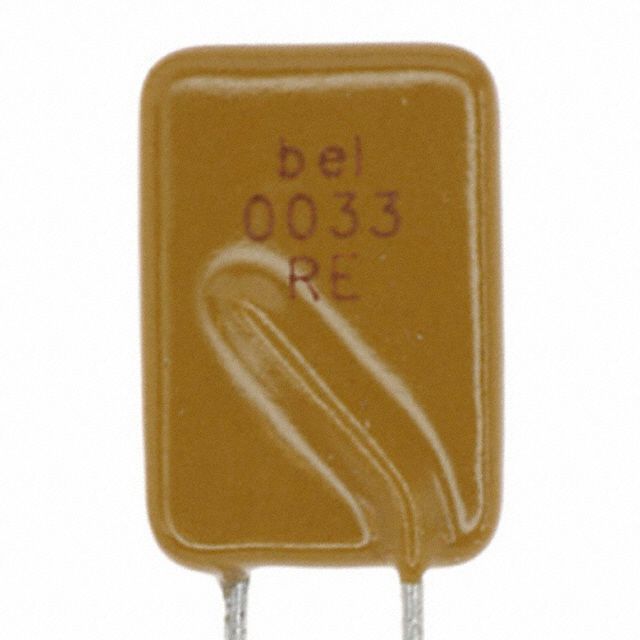

0ZRE0033FF1A BELDEN INC	BELDEN INC	₹21.27	0ZRE	BulkBox	Active	Polymeric	240V	330 mA	740 mA	6 A	21 s	830 mOhms	2.6 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.449" L x 0.150" W (11.40mm x 3.80mm)	0.650" (16.50mm)	-	0.201" (5.10mm)
0ZRR0185FF2B BELDEN INC	BELDEN INC	₹19.31	0ZRR	Tape & Reel (TR)	Active	Polymeric	60V	1.85 A	3.7 A	40 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.701" Dia x 0.122" T (17.80mm x 3.10mm)	0.902" (22.90mm)	-	0.201" (5.10mm)
0ZRP0135FF2B BELDEN INC	BELDEN INC	₹21.80	0ZRP	Tape & Reel (TR)	Active	Polymeric	60V	1.35 A	2.7 A	40 A	4.5 s	110 mOhms	370 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.402" L x 0.150" W (10.20mm x 3.81mm)	0.669" (17.00mm)	-	0.201" (5.10mm)
0ZRN0070FF2D BELDEN INC	BELDEN INC	₹29.19	0ZRN	Tape & Reel (TR)	Active	Polymeric	30V	700 mA	1.4 A	40 A	3.2 s	300 mOhms	800 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.272" L x 0.118" W (6.90mm x 3.00mm)	0.425" (10.80mm)	-	0.201" (5.10mm)
0ZRN0300FF2D BELDEN INC	BELDEN INC	₹29.19	0ZRN	Tape & Reel (TR)	Active	Polymeric	16V	3 A	6 A	100 A	5 s	33 mOhms	79 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.346" L x 0.118" W (8.80mm x 3.00mm)	0.543" (13.80mm)	-	0.201" (5.10mm)
0ZRN0400FF2D BELDEN INC	BELDEN INC	₹36.85	0ZRN	Tape & Reel (TR)	Active	Polymeric	16V	4 A	7 A	100 A	5 s	24 mOhms	60 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.394" L x 0.118" W (10.00mm x 3.00mm)	0.591" (15.00mm)	-	0.201" (5.10mm)
0ZRR0050FF1E BELDEN INC	BELDEN INC	₹10.68	0ZRR	Bulk	Active	Polymeric	60V	500 mA	1 A	40 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.311" Dia x 0.122" T (7.90mm x 3.10mm)	0.539" (13.70mm)	-	0.201" (5.10mm)
0ZRN0600FF2B BELDEN INC	BELDEN INC	₹50.28	0ZRN	Tape & Reel (TR)	Active	Polymeric	16V	6 A	10.8 A	100 A	5 s	13 mOhms	32 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.441" L x 0.118" W (11.20mm x 3.00mm)	0.827" (21.00mm)	-	0.201" (5.10mm)
0ZRP0110FF2B BELDEN INC	BELDEN INC	₹21.27	0ZRP	Tape & Reel (TR)Cut Tape (CT)	Active	Polymeric	60V	1.1 A	2.2 A	40 A	3 s	170 mOhms	470 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.299" L x 0.161" W (7.60mm x 4.10mm)	0.591" (15.00mm)	-	0.201" (5.10mm)
0ZRE0012FF1C BELDEN INC	BELDEN INC	₹15.31	0ZRE	Box	Active	Polymeric	240V	120 mA	300 mA	2 A	15 s	3 Ohms	12 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.327" L x 0.150" W (8.30mm x 3.80mm)	0.421" (10.70mm)	-	0.201" (5.10mm)
0ZRG0120FF1E BELDEN INC	BELDEN INC	₹15.75	0ZRG	Bulk	Active	Polymeric	30V	1.2 A	2 A	40 A	700 ms	40 mOhms	140 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.272" Dia x 0.118" T (6.90mm x 3.00mm)	0.461" (11.70mm)	-	0.201" (5.10mm)
0ZRP0050FF1E BELDEN INC	BELDEN INC	₹16.02	0ZRP	Bulk	Active	Polymeric	60V	500 mA	1 A	40 A	800 ms	320 mOhms	900 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.280" L x 0.142" W (7.10mm x 3.60mm)	0.450" (11.43mm)	-	0.201" (5.10mm)
0ZRM0090FF1E BELDEN INC	BELDEN INC	₹18.90	0ZRM	Box	Active	Polymeric	120V	900 mA	1.8 A	5 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	Radial, Disc	0.469" Dia x 0.150" T (11.90mm x 3.80mm)	0.626" (15.90mm)	-	0.201" (5.10mm)
