Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | 2 | |
| Two-Way Signal Paths | - | |
| Typical Standoff Voltage | 3.3V (Max) | |
| Minimum Breakdown Volts | - | |
| Max Clamp at Peak Current | 11V (Typ) | |
| Peak Pulse 10/1000us | 3A (8/20µs) | |
| Pulse Peak Power | - | |
| AC Line Surge Guard | No | |
| Intended Uses | Ethernet, HDMI | |
| Capacitance at Specific Hz | 0.4pF @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

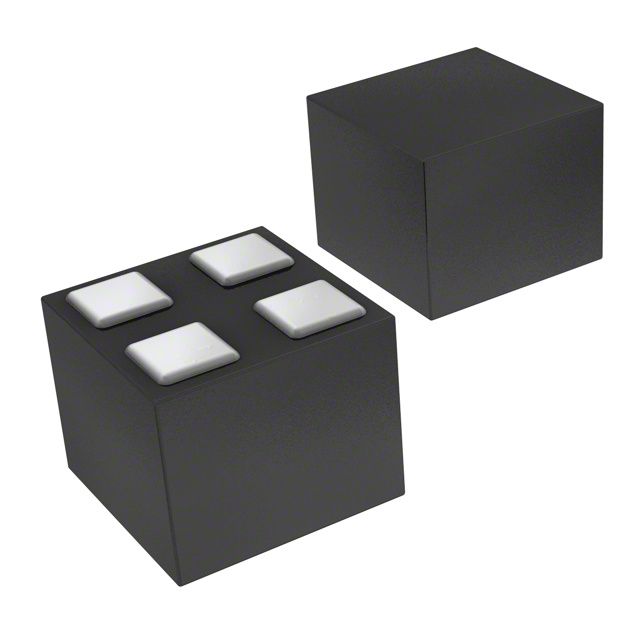

| Component Housing Style | 4-WFBGA | |
| Vendor Package Type | - |
Description
Perfectly designed for situations involving Ethernet, HDMI. Delivers capacitance at a specified frequency of 0.4pF @ 1MHz. Endures peak pulse current of 3A (8/20µs) in 10/1000µs conditions. Maximum signal delay 11V (Typ) at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 4-WFBGA that offers mechanical and thermal protection. Safeguard for power lines No against surges and disruptions. Product status Obsolete concerning availability and lifecycle. Type classification Zener for specifications. Unidirectional pathways 2 for communication. The highest clamping voltage 11V (Typ) at peak current Ipp for surge protection. Standard reverse standoff voltage 3.3V (Max) for protection.
