Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250000 | ₹ 2.26000 | ₹ 5,65,000.00 |
| 100000 | ₹ 2.49000 | ₹ 2,49,000.00 |
| 70000 | ₹ 2.60000 | ₹ 1,82,000.00 |
| 50000 | ₹ 2.70000 | ₹ 1,35,000.00 |
| 30000 | ₹ 2.89000 | ₹ 86,700.00 |
| 20000 | ₹ 3.05000 | ₹ 61,000.00 |
| 10000 | ₹ 3.37000 | ₹ 33,700.00 |
| 500 | ₹ 3.67000 | ₹ 1,835.00 |
| 100 | ₹ 9.06000 | ₹ 906.00 |
| 10 | ₹ 9.25000 | ₹ 92.50 |
| 1 | ₹ 13.35000 | ₹ 13.35 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | GiGUARD | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | - | |
| Two-Way Signal Paths | 1 | |
| Typical Standoff Voltage | 6.5V | |
| Minimum Breakdown Volts | 7V | |
| Max Clamp at Peak Current | 15.5V | |
| Peak Pulse 10/1000us | 3A (8/20µs) | |
| Pulse Peak Power | 54W | |
| AC Line Surge Guard | No | |
| Intended Uses | Ethernet, HDMI, USB | |
| Capacitance at Specific Hz | 0.3pF @ 1MHz | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

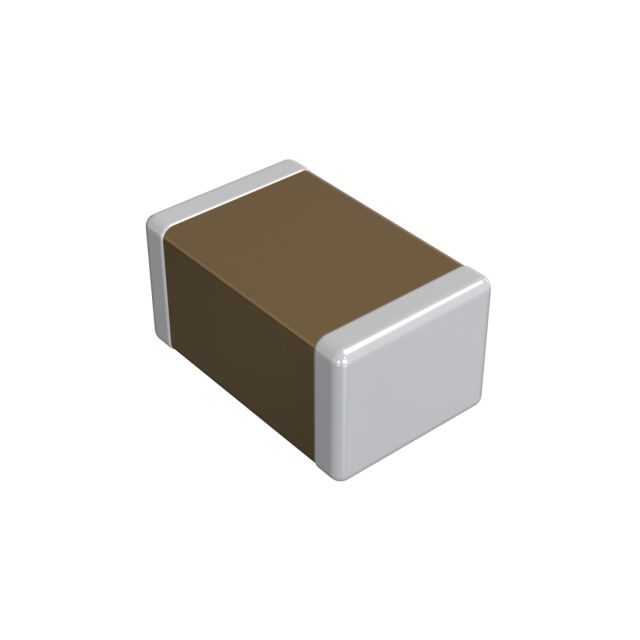

| Component Housing Style | 0402 (1005 Metric) | |
| Vendor Package Type | 0402 |
Description
Perfectly designed for situations involving Ethernet, HDMI, USB. Facilitates 1 channels for bidirectional communication. Delivers capacitance at a specified frequency of 0.3pF @ 1MHz. Endures peak pulse current of 3A (8/20µs) in 10/1000µs conditions. Maximum signal delay 15.5V at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0402 (1005 Metric) that offers mechanical and thermal protection. Type of package 0402 that preserves the integrity of the device. The utmost pulse power 54W to protect devices. Safeguard for power lines No against surges and disruptions. Product status Active concerning availability and lifecycle. Classification series for the product or component GiGUARD. Supplier package type 0402 for component selection. Type classification Zener for specifications. The lowest breakdown voltage value 7V for safety protocols. The highest clamping voltage 15.5V at peak current Ipp for surge protection. Standard reverse standoff voltage 6.5V for protection.
