Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 109.94000 | ₹ 6,59,640.00 |
| 4500 | ₹ 113.27000 | ₹ 5,09,715.00 |
| 3000 | ₹ 115.37000 | ₹ 3,46,110.00 |
| 1500 | ₹ 116.81000 | ₹ 1,75,215.00 |
| 750 | ₹ 119.05000 | ₹ 89,287.50 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 171.77000 | ₹ 171.77 |
| 10 | ₹ 169.99000 | ₹ 1,699.90 |
| 100 | ₹ 161.98000 | ₹ 16,198.00 |
| 500 | ₹ 145.07000 | ₹ 72,535.00 |
| 750 | ₹ 122.82000 | ₹ 92,115.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PAR® | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | 1 | |
| Two-Way Signal Paths | - | |
| Typical Standoff Voltage | 13V | |
| Minimum Breakdown Volts | 14.4V | |
| Max Clamp at Peak Current | 21.5V | |
| Peak Pulse 10/1000us | 307A | |
| Pulse Peak Power | 6600W (6.6kW) | |
| AC Line Surge Guard | No | |
| Intended Uses | - | |
| Capacitance at Specific Hz | - | |
| Ambient Temp Range | -55°C ~ 175°C (TJ) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q101 | |
| Attachment Mounting Style | Surface Mount | |

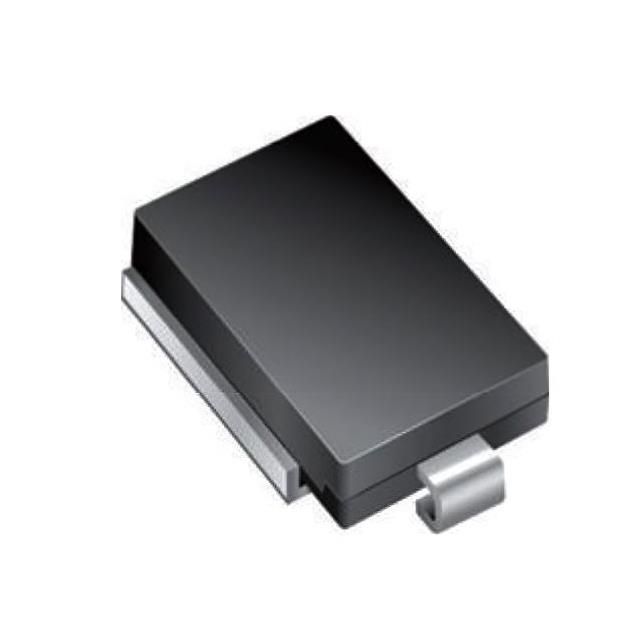

| Component Housing Style | DO-218AB | |
| Vendor Package Type | DO-218AB |
Description
Endures peak pulse current of 307A in 10/1000µs conditions. Evaluated as Automotive grade for quality control. Maximum signal delay 21.5V at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 175°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case DO-218AB that offers mechanical and thermal protection. Type of package DO-218AB that preserves the integrity of the device. The utmost pulse power 6600W (6.6kW) to protect devices. Safeguard for power lines No against surges and disruptions. Product status Active concerning availability and lifecycle. Certification AEC-Q101 for compliance with testing or regulatory standards. Classification series for the product or component PAR®. Supplier package type DO-218AB for component selection. Type classification Zener for specifications. Unidirectional pathways 1 for communication. The lowest breakdown voltage value 14.4V for safety protocols. The highest clamping voltage 21.5V at peak current Ipp for surge protection. Standard reverse standoff voltage 13V for protection.
