Stock:
Distributor: 123
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 12,458.22000 | ₹ 12,458.22 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 14,148.74000 | ₹ 3,53,718.50 |
| 10 | ₹ 14,833.35000 | ₹ 1,48,333.50 |
| 1 | ₹ 16,772.63000 | ₹ 16,772.63 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 15,299.99000 | ₹ 1,52,999.90 |
| 5 | ₹ 15,533.17000 | ₹ 77,665.85 |
| 3 | ₹ 15,769.91000 | ₹ 47,309.73 |
| 1 | ₹ 16,010.21000 | ₹ 16,010.21 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 16,305.78000 | ₹ 16,305.78 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 16,638.55000 | ₹ 16,638.55 |
| 10 | ₹ 14,714.37000 | ₹ 1,47,143.70 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Harmony XVS | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Output Driver Electronics | - | |
| Entry Signal Category | DC | |
| Rated Operating Voltage | - | |
| Voltage Operating Window | 10 ~ 30V | |
| Oscillation Rate Hz | - | |
| Core Technology Platform | - | |
| Runtime Mode Selection | - | |
| Operational Time Span | - | |
| Audio Decibel Output | - | |
| Power Supply Amperage | 160mA | |
| Connection Port Placement | User Defined | |
| Ambient Temp Range | -10°C ~ 55°C | |
| Certification Body | CE | |
| Performance Rating Specs | - | |
| Dust Water Resistance Rating | IP20, IP65 | |
| Attachment Mounting Style | DIN Rail | |
| Circuit End Method | Wire Leads | |
| Package Size Specs | 4.134" L x 4.134" W (105.00mm x 105.00mm) | |
| Maximum Mounted Height | 1.972" (50.10mm) |

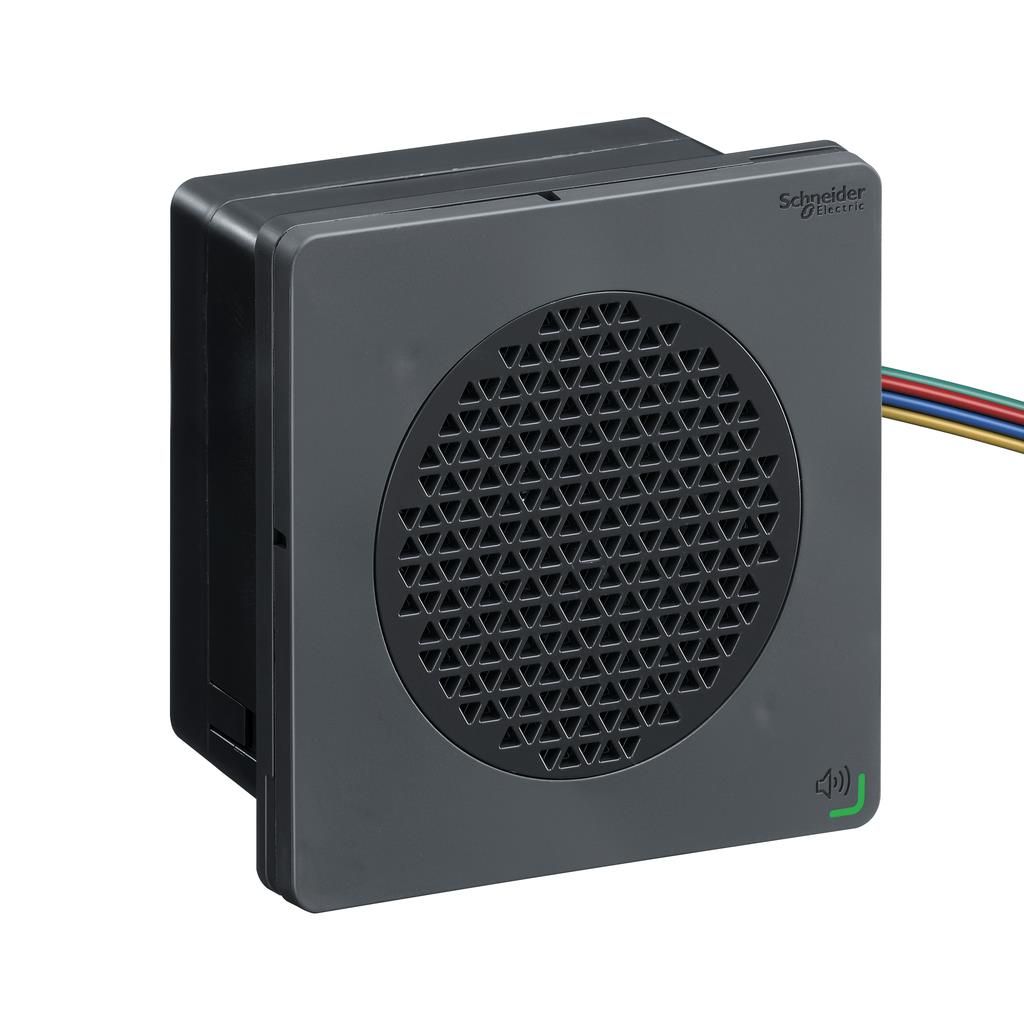

Description
Complies with the criteria of entities acknowledged as CE. Employs supply current defined as 160mA. Maximum installed height of 1.972" (50.10mm) for components affixed to the board. Rated with IP IP20, IP65 to safeguard against dust and moisture penetration. Configured with DC input type for diverse applications. Mounting configuration DIN Rail for structural stability. Temperature range -10°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. The User Defined position of the port for installation reference. Product status Active concerning availability and lifecycle. Classification series for the product or component Harmony XVS. Details on package size 4.134" L x 4.134" W (105.00mm x 105.00mm) for electrical or mechanical components. Measurement dimensions 4.134" L x 4.134" W (105.00mm x 105.00mm) for component specifications. Termination method Wire Leads for electrical or mechanical connections. Voltage operating range 10 ~ 30V for electronic systems.
