Manufacturer

ALPHA WIRE

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Cord Construction Style	AWG Wire Size	Multi-Filament Count	Core Wire Alloy	Cable Sheath Composition	Outer Jacket Thickness	Insulation Jacket Depth	Linear Length Dimension	Electrical Voltage Rating	Ambient Temp Range	Cable Outer Sheath Hue	Performance Rating Specs	Key Product Highlights	Quality Grade Level	Certification Qualification

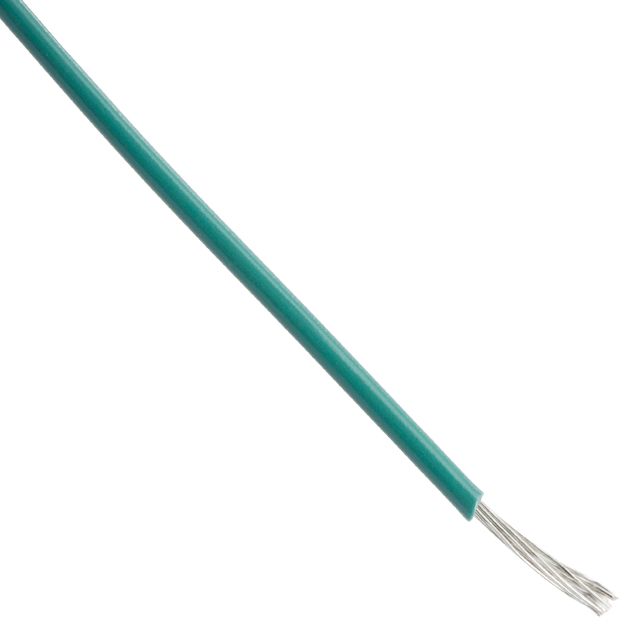

1856/19 GR001 ALPHA WIRE	ALPHA WIRE	₹26.04	-	Spool	Active	Hook-Up	20 AWG	19/32	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.060" (1.52mm)	0.010" (0.25mm)	1000.0' (304.8m)	600V	-55°C ~ 105°C	Green	-	-	-	MIL-W-16878E/1

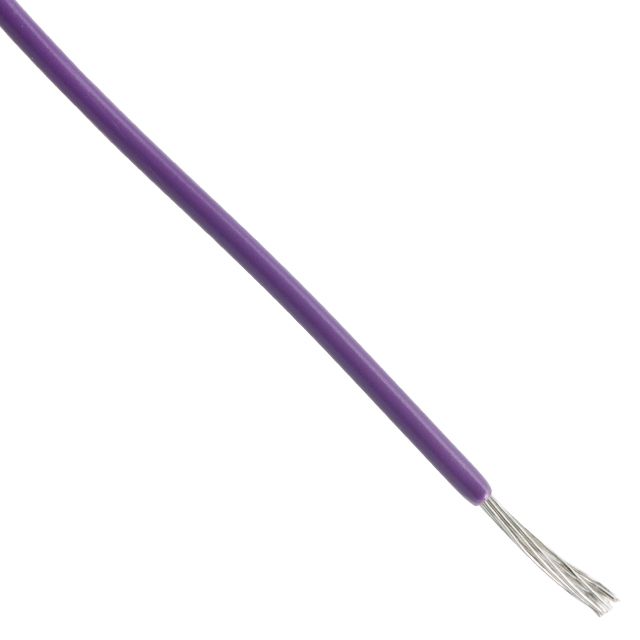

6713 VI001 ALPHA WIRE	ALPHA WIRE	₹25.88	EcoWire®	Spool	Active	Hook-Up	22 AWG	7/30	Copper, Tinned	Polyphenylene Ether, Modified (mPPE)	0.049" (1.24mm)	0.009" (0.23mm)	1000.0' (304.8m)	600V	-40°C ~ 105°C	Violet	UL Style 11028	-	-	-
2618 RD001 ALPHA WIRE	ALPHA WIRE	₹134.56	ThermoThin	Spool	Active	Hook-Up	18 AWG	19/30	Copper, Nickel Coated	Perfluoroalkoxy (PFA)	0.061" (1.55mm)	0.007" (0.18mm)	1000.0' (304.8m)	600V	-150°C ~ 300°C	Red	UL Style 11905	Chemical Resistant, High Temperature, UV Resistant	-	-

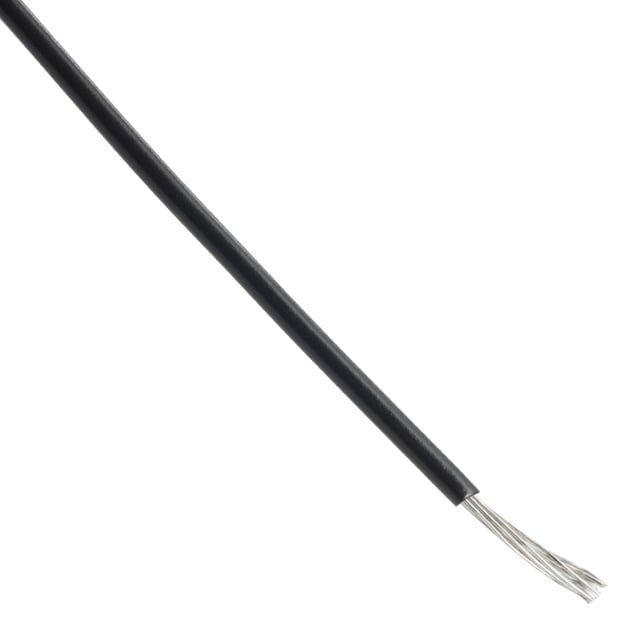

1856/19 BK001 ALPHA WIRE	ALPHA WIRE	₹22,853.42	-	Spool	Active	Hook-Up	20 AWG	19/32	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.060" (1.52mm)	0.010" (0.25mm)	1000.0' (304.8m)	600V	-55°C ~ 105°C	Black	-	-	-	MIL-W-16878E/1
3075 RD001 ALPHA WIRE	ALPHA WIRE	₹31.78	-	Spool	Active	Hook-Up	18 AWG	16/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.111" (2.82mm)	0.032" (0.81mm)	1000.0' (304.8m)	600V	-20°C ~ 105°C	Red	ISO 10993, UL Style 1015	Biological Compatibility	-	-
2626 GR005 ALPHA WIRE	ALPHA WIRE	₹117.12	ThermoThin	Spool	Active	Hook-Up	26 AWG	19/38	Copper, Nickel Coated	Perfluoroalkoxy (PFA)	0.033" (0.84mm)	0.007" (0.18mm)	100.0' (30.5m)	600V	-150°C ~ 300°C	Green	UL Style 11905	Chemical Resistant, High Temperature, UV Resistant	-	-

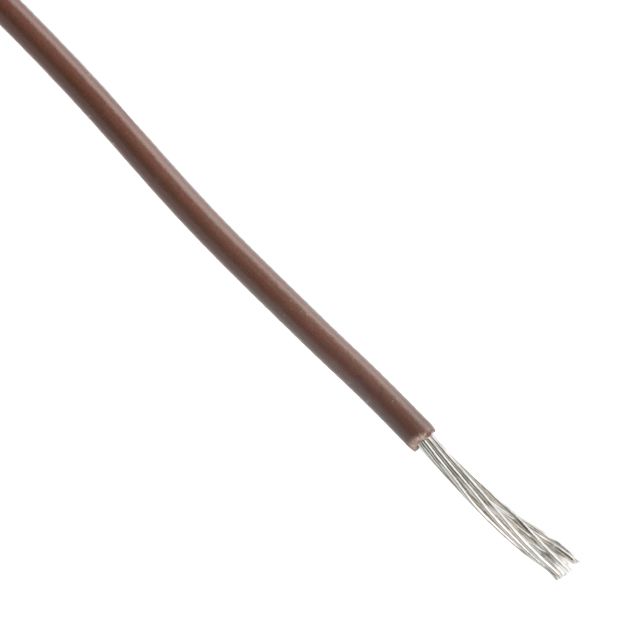

3053 BR001 ALPHA WIRE	ALPHA WIRE	₹21.06	-	Spool	Active	Hook-Up	20 AWG	10/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.069" (1.75mm)	0.016" (0.41mm)	1000.0' (304.8m)	300V	-40°C ~ 105°C	Brown	ISO 10993, UL Style 1007/1569	Biological Compatibility	-	-

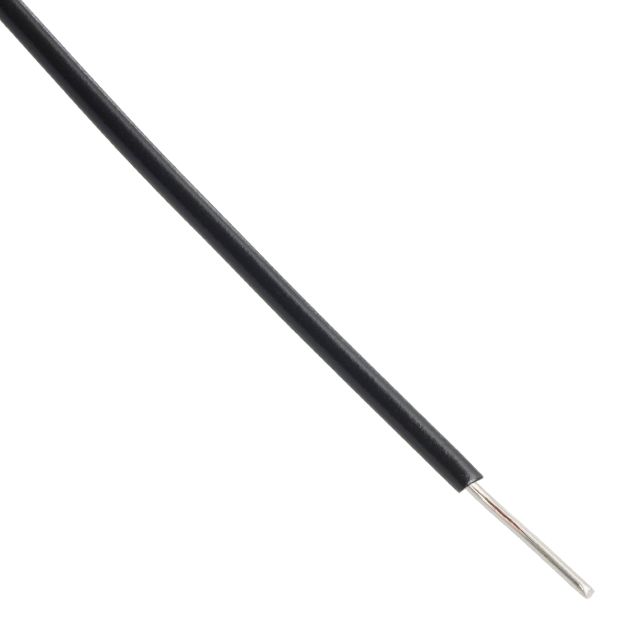

5952 BK001 ALPHA WIRE	ALPHA WIRE	₹52.57	-	Spool	Active	Hook-Up	28 AWG	Solid	Copper, Silver Coated	Polyvinylidene Fluoride (PVDF)	0.024" (0.61mm)	0.006" (0.15mm)	50.00' (15.24m)	-	-40°C ~ 125°C	Black	UL Style 1422	-	-	-
3049 BL001 ALPHA WIRE	ALPHA WIRE	₹6,862.29	-	Spool	Active	Hook-Up	26 AWG	7/34	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.051" (1.30mm)	0.016" (0.41mm)	1000.0' (304.8m)	300V	-40°C ~ 105°C	Blue	ISO 10993, UL Style 1007/1569	Biological Compatibility	-	-

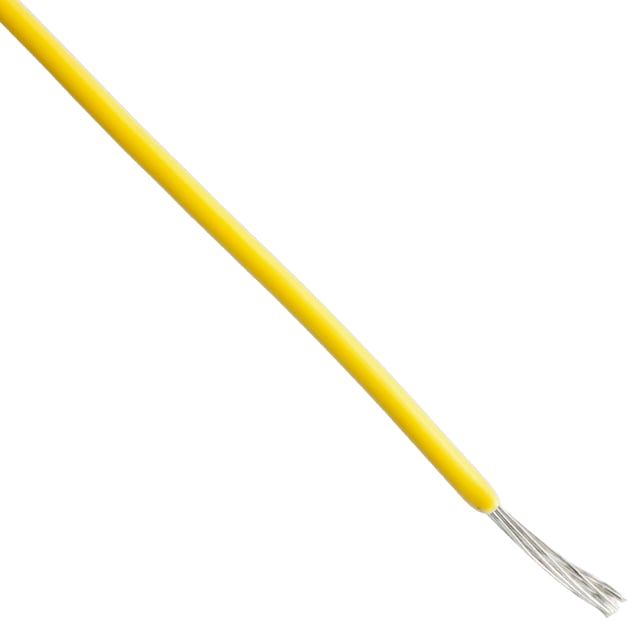

1852 YL001 ALPHA WIRE	ALPHA WIRE	₹15.52	-	Spool	Active	Hook-Up	28 AWG	7/36	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.035" (0.89mm)	0.010" (0.25mm)	1000.0' (304.8m)	600V	-55°C ~ 105°C	Yellow	-	-	-	MIL-W-16878E/1 and MIL-W-76B Type LW

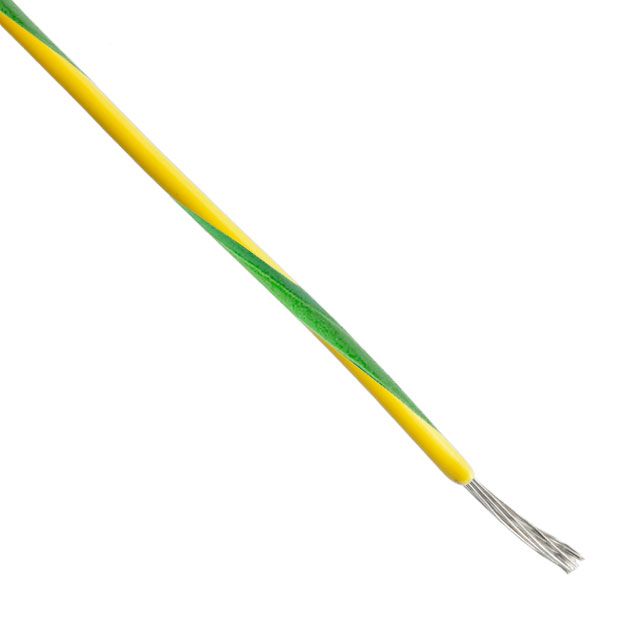

7036 YG001 ALPHA WIRE	ALPHA WIRE	₹157.46	-	Spool	Active	Hook-Up	12 AWG	19/0.0185"	Copper, Tinned	Poly-Vinyl Chloride (XLPVC), Irradiated	0.122" (3.10mm)	0.016" (0.41mm)	1000.0' (304.8m)	300V	-55°C ~ 105°C	Yellow, Green Stripe	UL Style 3317	-	-	MIL-W-16878E Type C

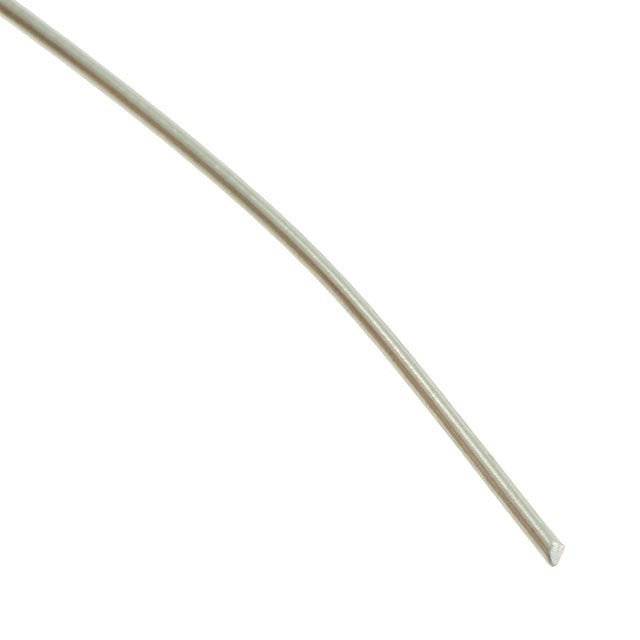

299/2 SV001 ALPHA WIRE	ALPHA WIRE	₹25,752.15	-	Spool	Active	Bus Bar	28 AWG	Solid	Copper, Annealed Tinned	No Jacketing - Bare Wire	-	-	1000.0' (304.8m)	-	0°C ~ 150°C	-	ASTM B-33	-	-	-
5952 GR001 ALPHA WIRE	ALPHA WIRE	₹2,213.46	-	Spool	Active	Hook-Up	28 AWG	Solid	Copper, Silver Coated	Polyvinylidene Fluoride (PVDF)	0.024" (0.61mm)	0.006" (0.15mm)	50.00' (15.24m)	-	-40°C ~ 125°C	Green	UL Style 1422	-	-	-
2636 WH005 ALPHA WIRE	ALPHA WIRE	₹90.77	ThermoThin	Spool	Active	Hook-Up	36 AWG	Solid	Copper, Nickel Coated	Perfluoroalkoxy (PFA)	0.017" (0.43mm)	0.006" (0.15mm)	100.0' (30.5m)	600V	-150°C ~ 300°C	White	-	Chemical Resistant, High Temperature, UV Resistant	-	-

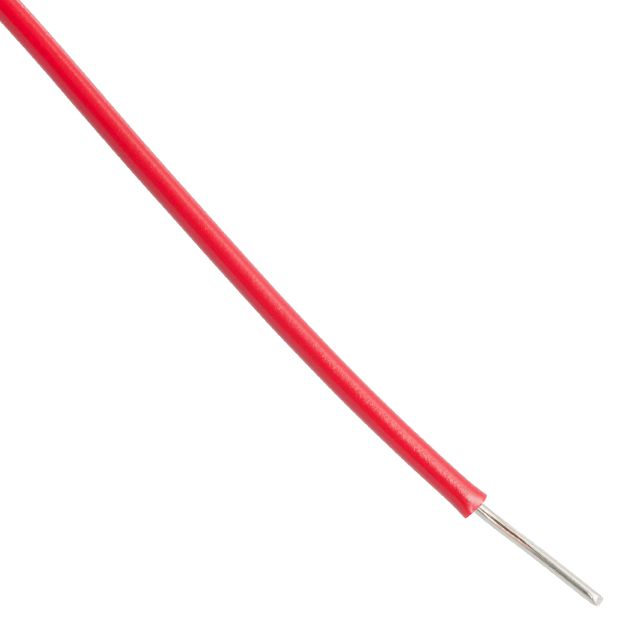

5952 RD001 ALPHA WIRE	ALPHA WIRE	₹2,213.46	-	Spool	Active	Hook-Up	28 AWG	Solid	Copper, Silver Coated	Polyvinylidene Fluoride (PVDF)	0.024" (0.61mm)	0.006" (0.15mm)	50.00' (15.24m)	-	-40°C ~ 125°C	Red	UL Style 1422	-	-	-
5953 BL001 ALPHA WIRE	ALPHA WIRE	₹53.64	-	Spool	Active	Hook-Up	26 AWG	Solid	Copper, Silver Coated	Polyvinylidene Fluoride (PVDF)	0.027" (0.69mm)	0.006" (0.15mm)	50.00' (15.24m)	-	-40°C ~ 125°C	Blue	UL Style 1422	-	-	-

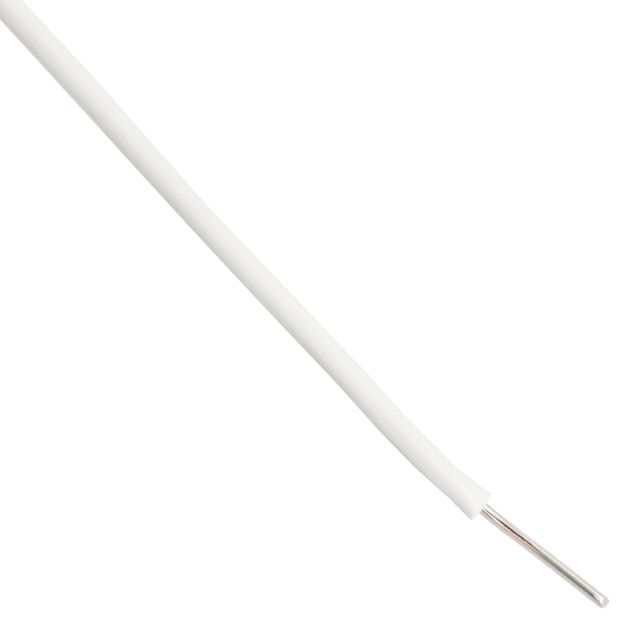

5953 WH001 ALPHA WIRE	ALPHA WIRE	₹53.64	-	Spool	Active	Hook-Up	26 AWG	Solid	Copper, Silver Coated	Polyvinylidene Fluoride (PVDF)	0.027" (0.69mm)	0.006" (0.15mm)	50.00' (15.24m)	-	-40°C ~ 125°C	White	UL Style 1422	-	-	-
2624 BK001 ALPHA WIRE	ALPHA WIRE	₹66.03	ThermoThin	Spool	Active	Hook-Up	24 AWG	19/36	Copper, Nickel Coated	Perfluoroalkoxy (PFA)	0.038" (0.96mm)	0.007" (0.18mm)	1000.0' (304.8m)	600V	-150°C ~ 300°C	Black	UL Style 11905	Chemical Resistant, High Temperature, UV Resistant	-	-

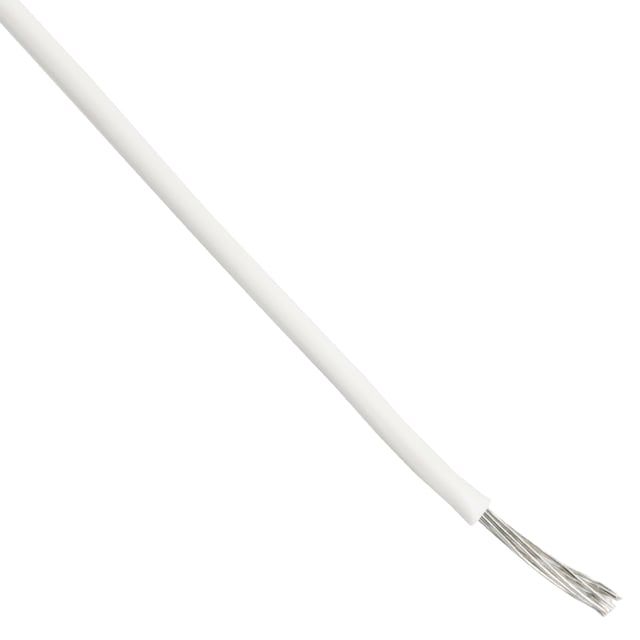

3051 WH001 ALPHA WIRE	ALPHA WIRE	₹16.59	-	Spool	Active	Hook-Up	22 AWG	7/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.062" (1.57mm)	0.016" (0.41mm)	1000.0' (304.8m)	300V	-40°C ~ 105°C	White	ISO 10993, UL Style 1007/1569	Biological Compatibility	-	-

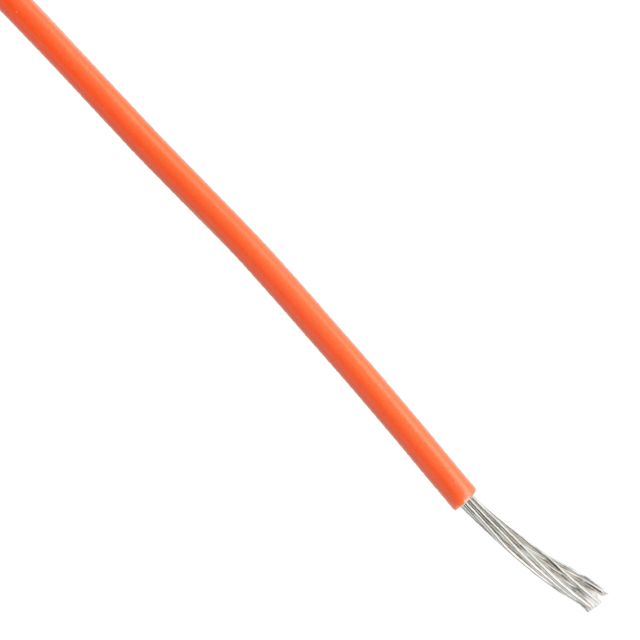

3075 OR001 ALPHA WIRE	ALPHA WIRE	₹31.78	-	Spool	Active	Hook-Up	18 AWG	16/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	0.111" (2.82mm)	0.032" (0.81mm)	1000.0' (304.8m)	600V	-20°C ~ 105°C	Orange	ISO 10993, UL Style 1015	Biological Compatibility	-	-
