Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 262.43000 | ₹ 262.43 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

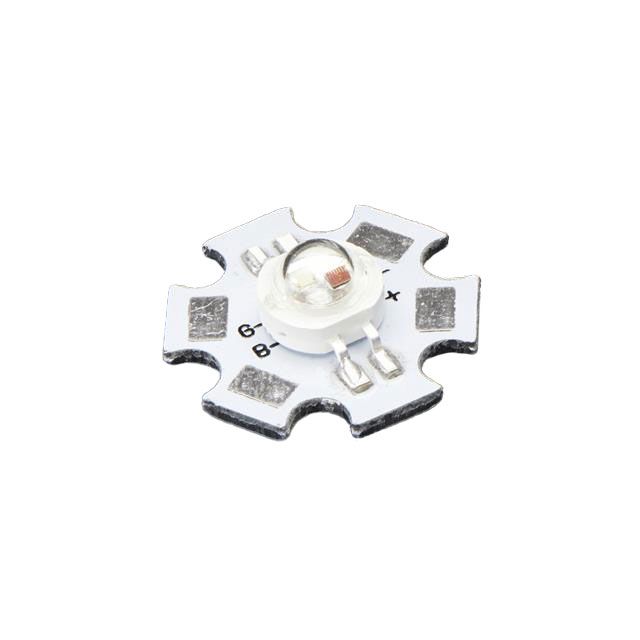

| Device Type Classification | LED Module | |
| Visual Hue | Red, Green, Blue (RGB) | |
| Color Temperature Kelvin | - | |
| Light Wavelength nm | 625nm Red, 525nm Green, 465nm Blue | |
| Setup Arrangement | Starboard | |
| Lumens at Specified Amps/Temp | 40lm Red, 55lm Green, 15lm Blue | |
| Testing Current Value | 350mA Red, 350mA Green, 350mA Blue | |
| Testing Temperature Condition | 25°C | |
| Typical Forward Voltage | 2.5V Red, 3.6V Green, 3.6V Blue | |
| Efficiency Lumens per Watt | 46 lm/W Red, 44 lm/W Green, 12 lm/W Blue | |
| Maximum Amp Rating | 350mA Red, 350mA Green, 350mA Blue | |
| Color Accuracy Rating | - | |
| Display View Cone Degrees | 120° | |
| Key Product Highlights | - | |
| Package Size Specs | 20.00mm Dia | |
| Vertical Dimension | 7.40mm | |
| LED Light Output Area | 8.00mm Dia | |
| Optical Element Category | Domed |
Description
Offered in a shade referred to as Red, Green, Blue (RGB) to enhance the system's aesthetics. Configured in a manner identified as Starboard. Indicates the maximum allowable current rating at 350mA Red, 350mA Green, 350mA Blue. Assessed at current levels outlined by 350mA Red, 350mA Green, 350mA Blue. Features a height of 7.40mm for accurate dimensional precision. Features Domed lens type tailored for specific application requirements. Light output zone 8.00mm Dia for efficient lighting. The lumens per watt 46 lm/W Red, 44 lm/W Green, 12 lm/W Blue evaluated at the testing current to determine lighting efficiency. The luminous output 40lm Red, 55lm Green, 15lm Blue at specified current and temperature for reliable performance. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Details on package size 20.00mm Dia for electrical or mechanical components. Measurement dimensions 20.00mm Dia for component specifications. The temperature condition for testing 25°C aimed at qualification procedures. Type classification LED Module for specifications. Viewing angle 120° for monitors. Common forward voltage Vf 2.5V Red, 3.6V Green, 3.6V Blue for diode operation. Wavelength of light 625nm Red, 525nm Green, 465nm Blue for RF or optical devices.
