Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 6,335.65000 | ₹ 6,335.65 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WLF12 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | LED Module | |
| Visual Hue | Red, Green, Blue (RGB) | |
| Color Temperature Kelvin | - | |
| Light Wavelength nm | 618nm Red, 520nm Green, 464nm Blue | |

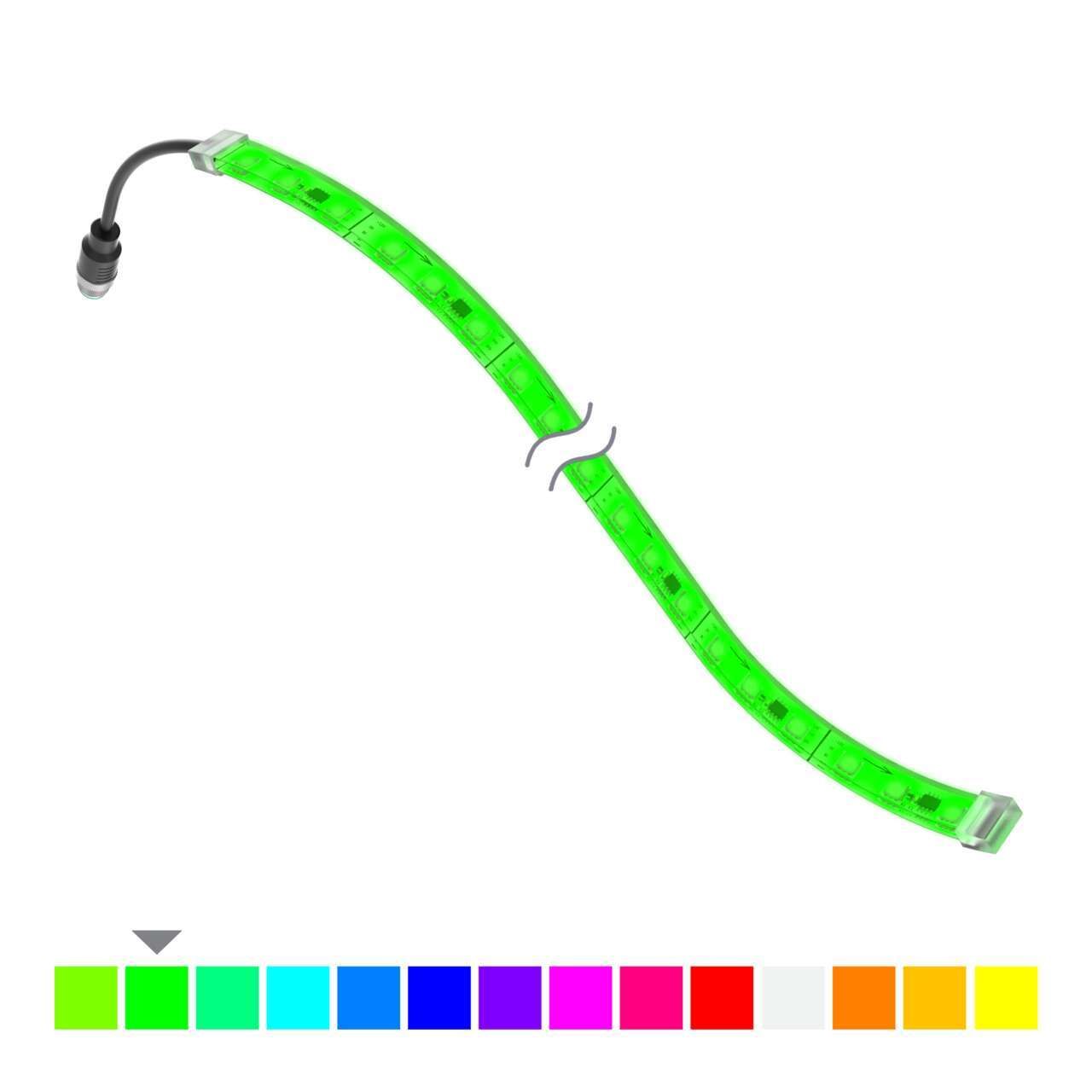

| Setup Arrangement | Linear Light Strip, Flexible | |
| Lumens at Specified Amps/Temp | 30lm Red, 55lm Green, 10lm Blue | |
| Testing Current Value | - | |
| Testing Temperature Condition | 25°C | |
| Typical Forward Voltage | 12V Red, 12V Green, 12V Blue | |
| Efficiency Lumens per Watt | - | |
| Maximum Amp Rating | 250mA Red, 250mA Green, 250mA Blue | |
| Color Accuracy Rating | - | |
| Display View Cone Degrees | 120° | |
| Key Product Highlights | Dimming, IP66, IP67, IP69K, With Connector | |
| Package Size Specs | 300.00mm L | |
| Vertical Dimension | 6.40mm | |
| LED Light Output Area | - | |
| Optical Element Category | Flat |
Description
Offered in a shade referred to as Red, Green, Blue (RGB) to enhance the system's aesthetics. Configured in a manner identified as Linear Light Strip, Flexible. Indicates the maximum allowable current rating at 250mA Red, 250mA Green, 250mA Blue. Equipped with features categorized as Dimming, IP66, IP67, IP69K, With Connector. Features a height of 6.40mm for accurate dimensional precision. Features Flat lens type tailored for specific application requirements. The luminous output 30lm Red, 55lm Green, 10lm Blue at specified current and temperature for reliable performance. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component WLF12. Details on package size 300.00mm L for electrical or mechanical components. Measurement dimensions 300.00mm L for component specifications. The temperature condition for testing 25°C aimed at qualification procedures. Type classification LED Module for specifications. Viewing angle 120° for monitors. Common forward voltage Vf 12V Red, 12V Green, 12V Blue for diode operation. Wavelength of light 618nm Red, 520nm Green, 464nm Blue for RF or optical devices.
