12 Results

Manufacturer

LUMEX OPTO/COMPONENTS INC

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Device Type Classification	Max Forward DC Current	Minimum Radiant Power	Light Wavelength nm	Typical Forward Voltage	Display View Cone Degrees	Installation Orientation	Ambient Temp Range	Quality Grade Level	Certification Qualification	Attachment Mounting Style	Component Housing Style

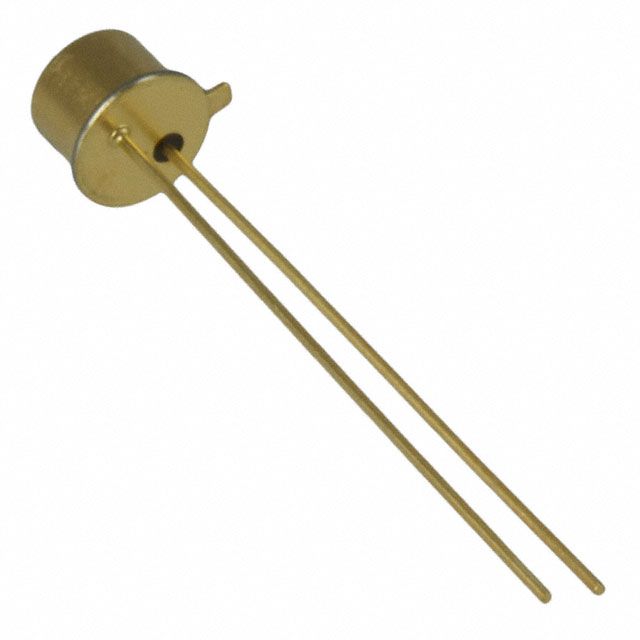

SSL-LXTO46UV2C LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	QuasarBrite	Bulk	Active	Ultraviolet (UV)	50mA	-	405nm	3.7V	80°	Top View	-40°C ~ 100°C (TA)	-	-	Through Hole	TO-46-2 Lens Top Metal Can

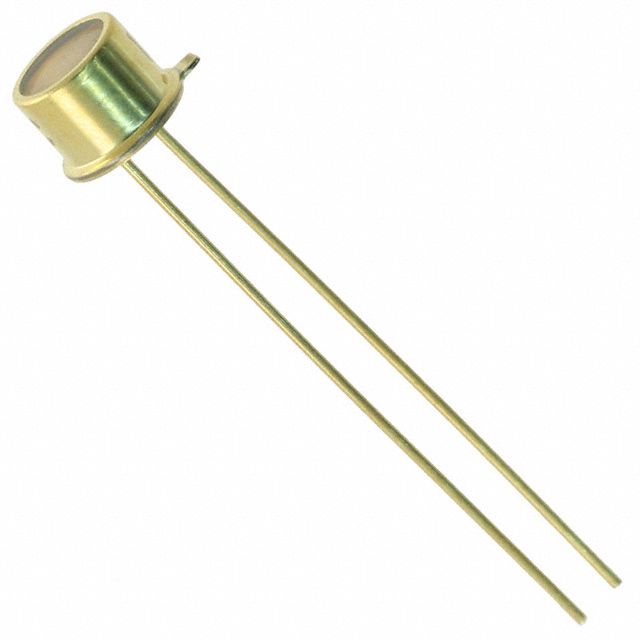

SSL-LXTO46365C LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	QuasarBrite	Tray	Active	Ultraviolet (UV)	20mA	-	365nm	3.6V	80°	Top View	-40°C ~ 100°C (TA)	-	-	Through Hole	TO-46-2 Lens Top Metal Can
OED-EL1206C140 LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Tape & Reel (TR)	Obsolete	Infrared (IR)	100mA	0.45mW/sr @ 50mA	940nm	1.3V	160°	Top View	-25°C ~ 85°C (TA)	-	-	Surface Mount	1206 (3216 Metric)
SML-LX3636VDC-TR LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Tape & Reel (TR)	Obsolete	Ultraviolet (UV)	60mA UVA, 120mA UVC	20mW/cm² @ 20mA, 2.5mW/cm² @ 60mA	400nm UVA, 275nm UVC	3V, 6V	140°	Top View	-40°C ~ 60°C	-	-	Surface Mount	1414 (3535 Metric)
SML-LX3636VSC-TR LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Tape & Reel (TR)	Obsolete	Ultraviolet (UV)	100mA	3.5mW/cm² @ 100mA	275nm	6V	140°	Top View	-40°C ~ 60°C	-	-	Surface Mount	1414 (3535 Metric)
SSL-LX5093UVC LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Obsolete	Ultraviolet (UV)	30mA	-	400nm	3.5V	12°	Top View	-40°C ~ 85°C (TA)	-	-	Through Hole	Radial
SSL-LX5093SUVC LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Obsolete	Ultraviolet (UV)	25mA	-	380nm	3.4V	30°	Top View	-40°C ~ 85°C (TA)	-	-	Through Hole	Radial
OED-CL-1L2 LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Obsolete	Infrared (IR)	100mA	15mW/sr @ 50mA	880nm	1.9V	60°	Top View	-25°C ~ 85°C (TA)	-	-	Through Hole	Radial
OED-EL-1556SN-RP LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Obsolete	Infrared (IR)	60mA	1.8mW/sr @ 50mA	940nm	1.2V	30°	Top View	-20°C ~ 70°C (TA)	-	-	Through Hole, Right Angle	Radial
OED-EL-23G LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Obsolete	Infrared (IR)	60mA	30mW/sr @ 50mA	940nm	1.3V	60°	Top View	-20°C ~ 85°C (TA)	-	-	Surface Mount	2-SMD, No Lead
SSL-LXTO46UV1C LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	QuasarBrite	Bulk	Active	Ultraviolet (UV)	30mA	-	385nm	3.3V	-	Top View	-40°C ~ 100°C (TA)	-	-	Through Hole	TO-46-2 Lens Top Metal Can
OED-EL305F4C50-HT LUMEX OPTO/COMPONENTS INC	LUMEX OPTO/COMPONENTS INC	-	-	Bulk	Active	Infrared (IR)	1.2A	7mW/sr @ 20mA	940nm	1.2V	50°	Top View	-40°C ~ 85°C (TA)	-	-	Through Hole	Radial
