Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WL-SWTP | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Visual Hue | White, Cool | |
| Color Temperature Kelvin | 5000K | |
| Flux at 85C Test Current | - | |
| Flux at 25C Test Current | 22lm (Typ) | |
| Testing Current Value | 60mA | |
| Typical Forward Voltage | 3.2V | |
| Efficiency Lumens per Watt | 115 lm/W | |
| Color Accuracy Rating | 85 (Typ) | |
| Maximum Amp Rating | 100mA | |
| Display View Cone Degrees | 120° | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

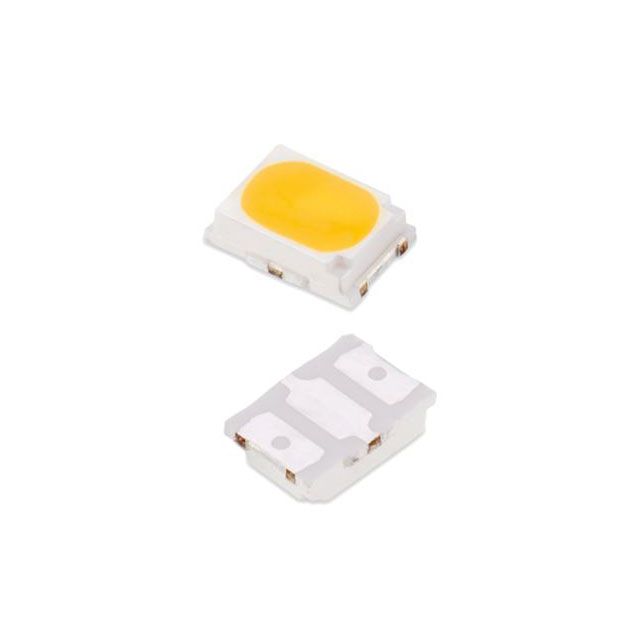

| Component Housing Style | 1208 (3020 Metric) | |
| Vendor Package Type | 3022 | |
| Package Size Specs | 0.118" L x 0.083" W (3.00mm x 2.10mm) | |
| Maximum Mounted Height | 0.031" (0.80mm) |
Description
Offers a correlated color temperature of 5000KK to create the desired lighting ambiance. Has a CRI score of 85 (Typ) for accurate color depiction. Offered in a shade referred to as White, Cool to enhance the system's aesthetics. Indicates the maximum allowable current rating at 100mA. Assessed at current levels outlined by 60mA. Presents flux at 25°C for the given test current of 22lm (Typ). Maximum installed height of 0.031" (0.80mm) for components affixed to the board. Employs 5000K light type for maximum brightness. The lumens per watt 115 lm/W evaluated at the testing current to determine lighting efficiency. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1208 (3020 Metric) that offers mechanical and thermal protection. Type of package 3022 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component WL-SWTP. Details on package size 0.118" L x 0.083" W (3.00mm x 2.10mm) for electrical or mechanical components. Measurement dimensions 0.118" L x 0.083" W (3.00mm x 2.10mm) for component specifications. Supplier package type 3022 for component selection. Viewing angle 120° for monitors. Common forward voltage Vf 3.2V for diode operation.
