Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 14,855.30000 | ₹ 7,42,765.00 |
| 25 | ₹ 15,198.57000 | ₹ 3,79,964.25 |
| 10 | ₹ 15,699.85000 | ₹ 1,56,998.50 |
| 5 | ₹ 16,118.59000 | ₹ 80,592.95 |
| 1 | ₹ 17,241.99000 | ₹ 17,241.99 |

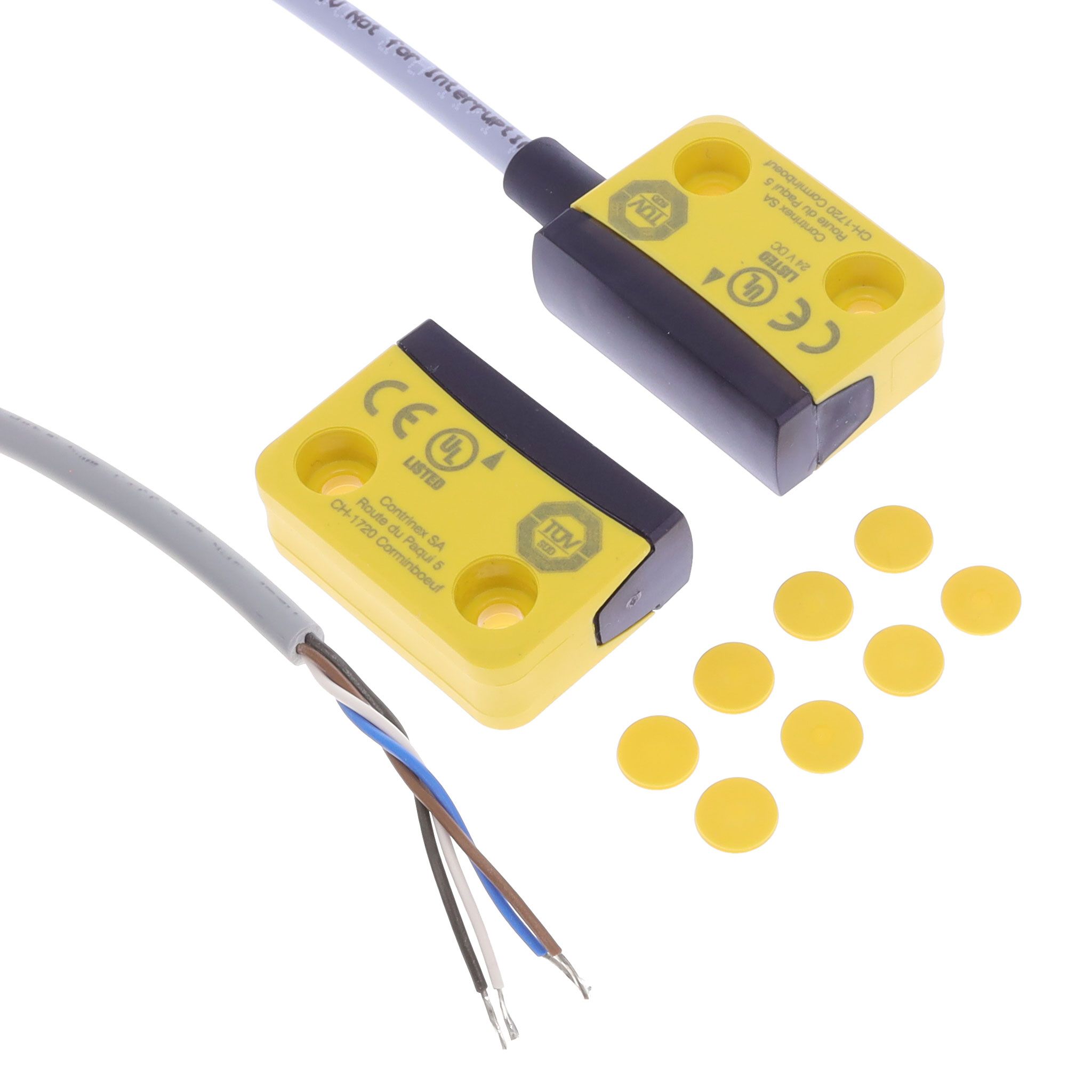

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 120257 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | Magnetic | |
| Electrical Pathway | DPST-NO | |
| Ampere Capacity Rating | 200mA (DC) | |
| Max Voltage Specification | 24VDC | |
| Power Supply Voltage | 24VDC | |
| Retention Grip Strength | - | |
| Activator Mechanism Type | Non-Contact | |
| Lead Termination Type | Cable Leads | |
| Key Product Highlights | - | |
| Activation Threshold | 8mm | |
| Deactivation Threshold | 17mm | |
| Tubing Thread Gauge | - | |
| Ambient Temp Range | -25°C ~ 80°C | |
| Dust Water Resistance Rating | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | |
| Certification Body | TUV, UL |
Description
Incorporates a Non-Contact actuator type to fulfill the desired function. Complies with the criteria of entities acknowledged as TUV, UL. Configured for circuit type described as DPST-NO. Sets the ampere rating to 200mA (DC). Rated with IP IP67/IP69K - Dust Tight, Water Resistant, Waterproof to safeguard against dust and moisture penetration. Must operate at 8mm for reliable performance. Should turn off at 17mm for safe mechanical or electrical operation. Temperature range -25°C ~ 80°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 120257. Voltage requirement 24VDC for electrical specifications. Type of termination Cable Leads for connector or device. Type classification Magnetic for specifications. Voltage supply 24VDC for device operation. Voltage specification 24VDC for electronic devices.
