Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 23.15000 | ₹ 57,875.00 |
| 1000 | ₹ 24.99000 | ₹ 24,990.00 |
| 500 | ₹ 26.01000 | ₹ 13,005.00 |
| 250 | ₹ 27.24000 | ₹ 6,810.00 |
| 100 | ₹ 29.29000 | ₹ 2,929.00 |
| 25 | ₹ 33.59000 | ₹ 839.75 |
| 10 | ₹ 37.50000 | ₹ 375.00 |
| 1 | ₹ 52.85000 | ₹ 52.85 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SP4T - Open/Closed | |
| Signal Mux/Demux Channels | 4:1 | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 80Ohm | |
| Inter-Channel Resistance Match | 15Ohm | |
| Single Positive Supply | 3V ~ 12V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 60ns, 50ns | |
| 3dB Bandwidth | 200MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 5pF, 5pF | |
| Max Off-State Leakage | 400nA | |
| Signal Interference Level | -70dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

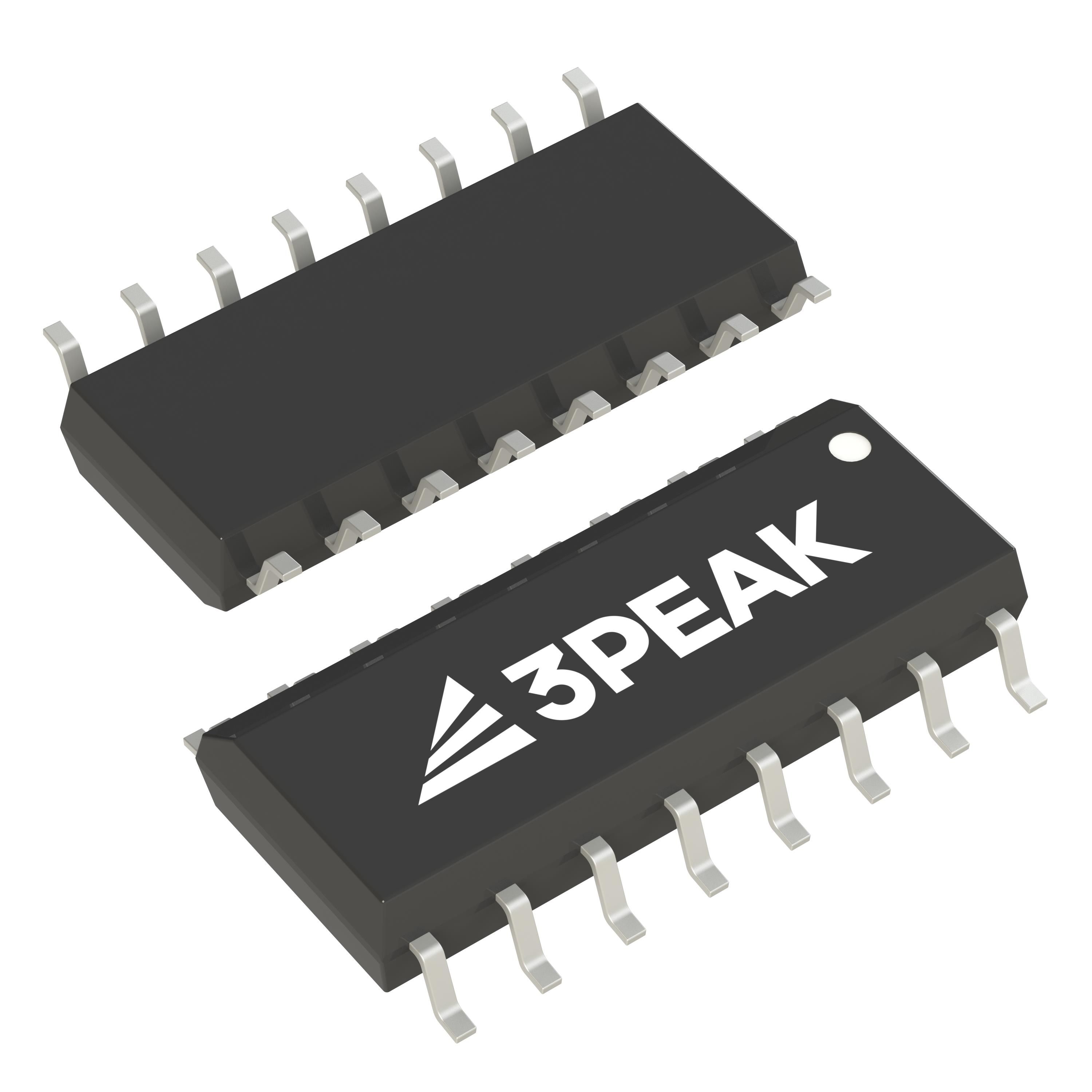

| Component Housing Style | 16-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 16-SOIC |
Description
Delivers a -3dB bandwidth of 200MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF, 5pF. Ensures ΔRon alignment accuracy defined at 15Ohm. Minimizes crosstalk with a level of -70dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 400nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 4:1 for signal control. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 80Ohm for effective conduction. Peak resistance in the on-state 80Ohm for electrical efficiency. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 16-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-SOIC for component selection. Circuit switch SP4T - Open/Closed for functional operations. Maximum on/off switching duration Ton/Toff 60ns, 50ns for timing accuracy. Single voltage supply for electronic devices at V+ 3V ~ 12V.
