Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 28.90000 | ₹ 72,250.00 |
| 1000 | ₹ 30.94000 | ₹ 30,940.00 |
| 500 | ₹ 32.16000 | ₹ 16,080.00 |
| 250 | ₹ 33.63000 | ₹ 8,407.50 |
| 100 | ₹ 36.08000 | ₹ 3,608.00 |
| 25 | ₹ 41.23000 | ₹ 1,030.75 |
| 10 | ₹ 45.91000 | ₹ 459.10 |
| 1 | ₹ 64.78000 | ₹ 64.78 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 80Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 3V ~ 12V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 60ns, 50ns | |
| 3dB Bandwidth | 200MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 5pF, 5pF | |
| Max Off-State Leakage | 400nA | |
| Signal Interference Level | -70dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

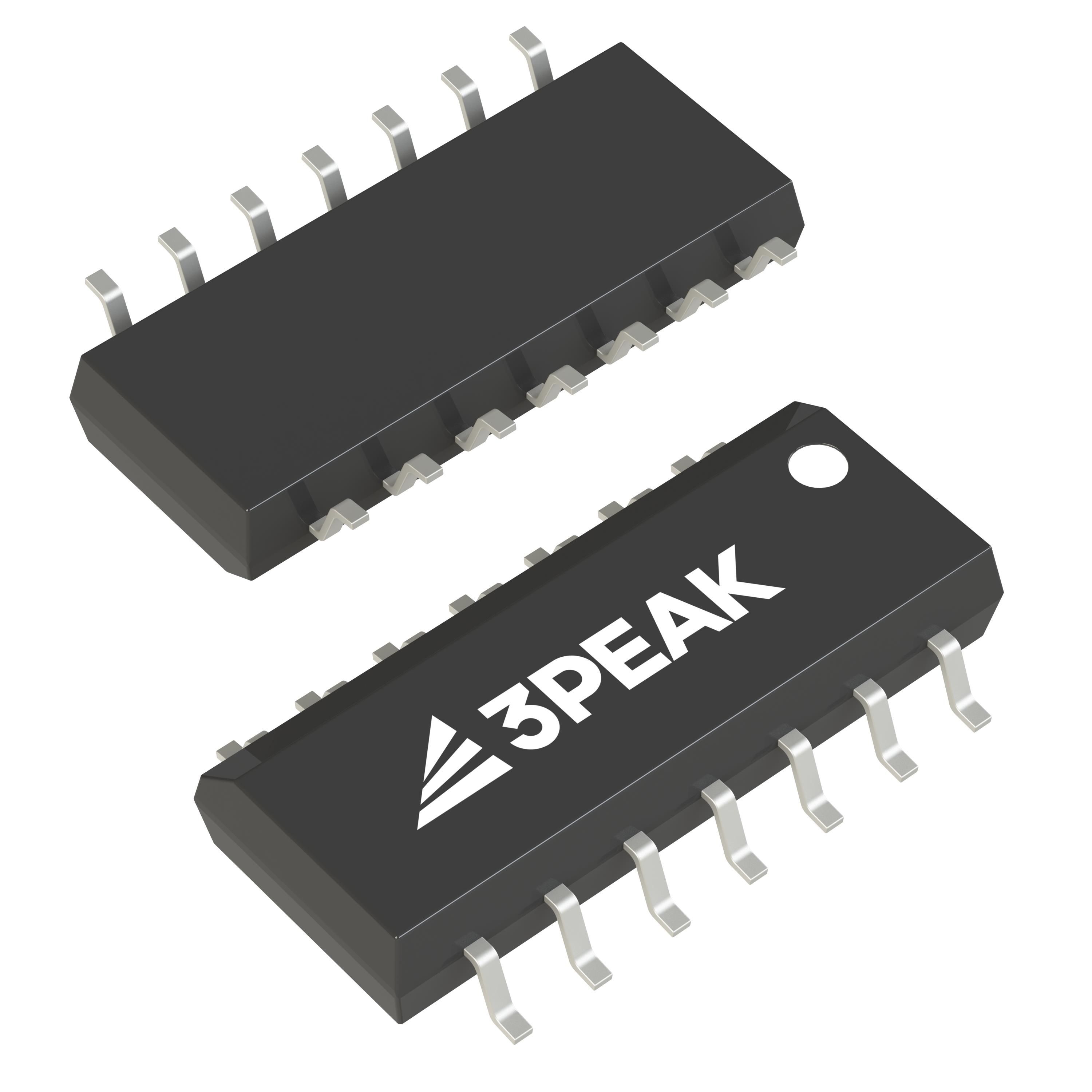

| Component Housing Style | 14-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 14-SOP |
Description
Delivers a -3dB bandwidth of 200MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF, 5pF. Minimizes crosstalk with a level of -70dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 400nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 80Ohm for effective conduction. Peak resistance in the on-state 80Ohm for electrical efficiency. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 14-SOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 14-SOP for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 60ns, 50ns for timing accuracy. Single voltage supply for electronic devices at V+ 3V ~ 12V.
