Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 24.97000 | ₹ 74,910.00 |
| 1000 | ₹ 26.93000 | ₹ 26,930.00 |
| 500 | ₹ 28.02000 | ₹ 14,010.00 |
| 250 | ₹ 29.33000 | ₹ 7,332.50 |
| 100 | ₹ 31.52000 | ₹ 3,152.00 |
| 25 | ₹ 36.09000 | ₹ 902.25 |
| 10 | ₹ 40.29000 | ₹ 402.90 |
| 1 | ₹ 56.26000 | ₹ 56.26 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT - Open/Closed | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 1.15Ohm | |
| Inter-Channel Resistance Match | 120mOhm | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 40ns, 15ns | |
| 3dB Bandwidth | 100MHz | |
| Charge Transfer Effect | 20pC | |
| Off-State Channel Capacitance | 5pF, 5pF | |
| Max Off-State Leakage | 10nA | |
| Signal Interference Level | -65dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

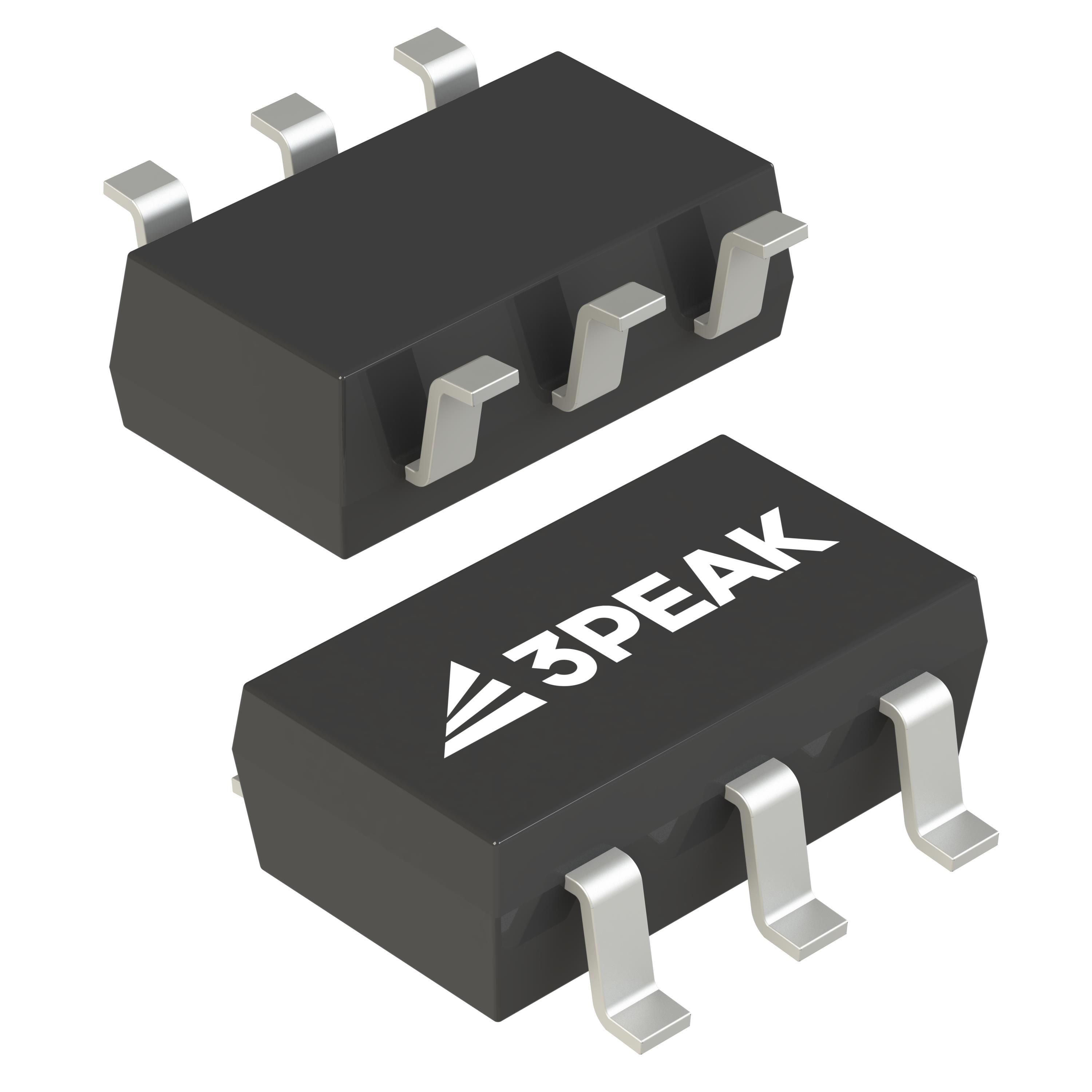

| Component Housing Style | SOT-23-6 | |
| Vendor Package Type | SOT-23-6 |
Description
Delivers a -3dB bandwidth of 100MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF, 5pF. Ensures ΔRon alignment accuracy defined at 120mOhm. Provides charge injection capability rated at 20pC. Minimizes crosstalk with a level of -65dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 10nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 1.15Ohm for effective conduction. Peak resistance in the on-state 1.15Ohm for electrical efficiency. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case SOT-23-6 that offers mechanical and thermal protection. Type of package SOT-23-6 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type SOT-23-6 for component selection. Circuit switch SPDT - Open/Closed for functional operations. Maximum on/off switching duration Ton/Toff 40ns, 15ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
