Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 8:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 100Ohm | |
| Inter-Channel Resistance Match | 1.5Ohm | |
| Single Positive Supply | 5V ~ 30V | |
| Dual Symmetric Supply | ±5V ~ 20V | |
| Max On/Off Switching Time | 150ns, 150ns | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | 2pC | |
| Off-State Channel Capacitance | 3pF, 26pF | |
| Max Off-State Leakage | 500pA | |
| Signal Interference Level | -92dB @ 100kHz | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

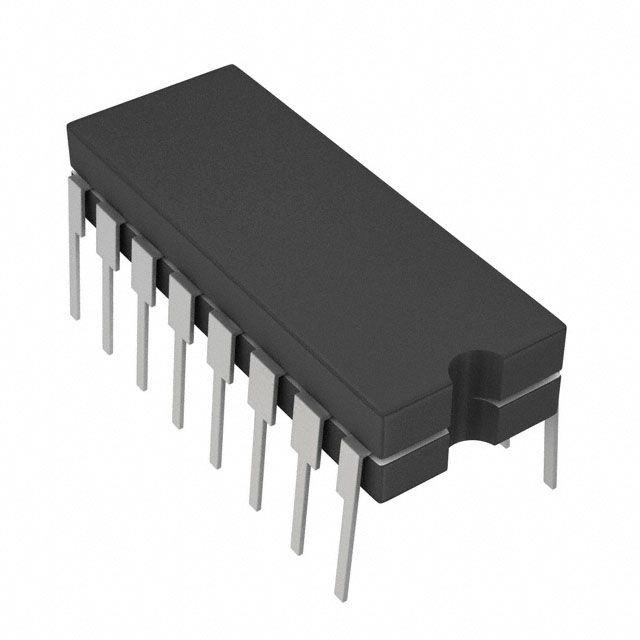

| Component Housing Style | 16-CDIP (0.300", 7.62mm) | |
| Vendor Package Type | 16-CERDIP |
Description
Offers off-state channel capacitance of 3pF, 26pF. Ensures ΔRon alignment accuracy defined at 1.5Ohm. Provides charge injection capability rated at 2pC. Minimizes crosstalk with a level of -92dB @ 100kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 500pA. Mounting configuration Through Hole for structural stability. Mux/demux pathway 8:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 100Ohm for effective conduction. Peak resistance in the on-state 100Ohm for electrical efficiency. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-CDIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 16-CERDIP that preserves the integrity of the device. Supplier package type 16-CERDIP for component selection. Maximum on/off switching duration Ton/Toff 150ns, 150ns for timing accuracy. Dual voltage supply for circuits at V± ±5V ~ 20V. Single voltage supply for electronic devices at V+ 5V ~ 30V.
