Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPST - NC | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 35Ohm | |
| Inter-Channel Resistance Match | 100mOhm | |
| Single Positive Supply | 13V ~ 44V | |
| Dual Symmetric Supply | ±7V ~ 22V | |
| Max On/Off Switching Time | 175ns, 145ns | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | 5pC | |
| Off-State Channel Capacitance | 9pF | |
| Max Off-State Leakage | 150nA | |
| Signal Interference Level | -85dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

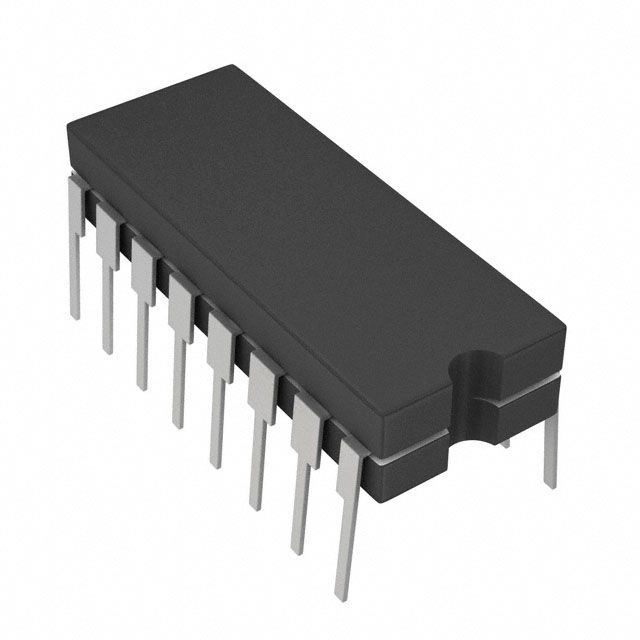

| Component Housing Style | 16-CDIP (0.300", 7.62mm) | |
| Vendor Package Type | 16-CDIP |
Description
Offers off-state channel capacitance of 9pF. Ensures ΔRon alignment accuracy defined at 100mOhm. Provides charge injection capability rated at 5pC. Minimizes crosstalk with a level of -85dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 150nA. Mounting configuration Through Hole for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 35Ohm for effective conduction. Peak resistance in the on-state 35Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-CDIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 16-CDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-CDIP for component selection. Circuit switch SPST - NC for functional operations. Maximum on/off switching duration Ton/Toff 175ns, 145ns for timing accuracy. Dual voltage supply for circuits at V± ±7V ~ 22V. Single voltage supply for electronic devices at V+ 13V ~ 44V.
