Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 8:4 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 3Ohm | |
| Inter-Channel Resistance Match | 500mOhm | |
| Single Positive Supply | 1.6V ~ 5.5V | |
| Dual Symmetric Supply | ±5V | |
| Max On/Off Switching Time | 2µs, 600ns (Typ) | |
| 3dB Bandwidth | 50MHz | |
| Charge Transfer Effect | -15pC | |
| Off-State Channel Capacitance | 50pF, 85pF | |
| Max Off-State Leakage | 250nA | |
| Signal Interference Level | -65dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

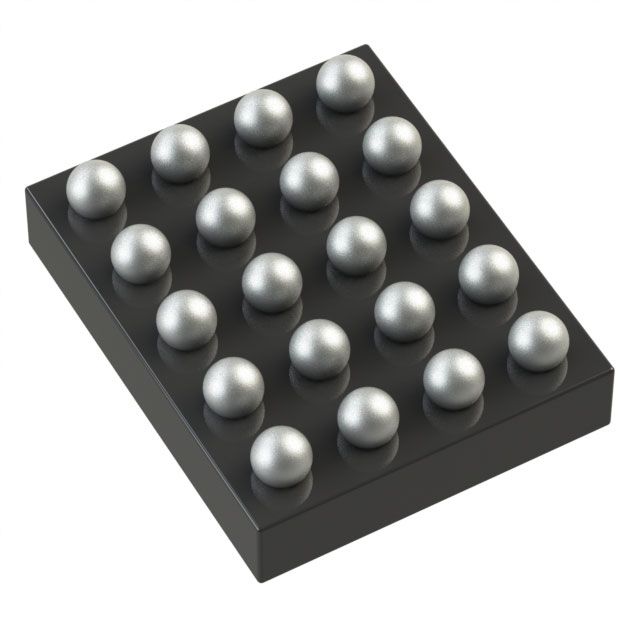

| Component Housing Style | 20-WFBGA, WLBGA | |
| Vendor Package Type | 20-WLP (1.63x2.03) |
Description
Delivers a -3dB bandwidth of 50MHz to maintain reliable signal quality. Offers off-state channel capacitance of 50pF, 85pF. Ensures ΔRon alignment accuracy defined at 500mOhm. Provides charge injection capability rated at -15pC. Minimizes crosstalk with a level of -65dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 250nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 8:4 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 3Ohm for effective conduction. Peak resistance in the on-state 3Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 20-WFBGA, WLBGA that offers mechanical and thermal protection. Type of package 20-WLP (1.63x2.03) that preserves the integrity of the device. Supplier package type 20-WLP (1.63x2.03) for component selection. Maximum on/off switching duration Ton/Toff 2µs, 600ns (Typ) for timing accuracy. Dual voltage supply for circuits at V± ±5V. Single voltage supply for electronic devices at V+ 1.6V ~ 5.5V.
