Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 2,983.01000 | ₹ 29,830.10 |
| 1 | ₹ 3,656.03000 | ₹ 3,656.03 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Last Time Buy | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 16:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 400Ohm | |
| Inter-Channel Resistance Match | 20Ohm | |
| Single Positive Supply | - | |
| Dual Symmetric Supply | ±15V | |
| Max On/Off Switching Time | 250ns, 250ns (Typ) | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 10pF, 52pF | |
| Max Off-State Leakage | 30pA (Typ) | |
| Signal Interference Level | - | |
| Ambient Temp Range | 0°C ~ 75°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

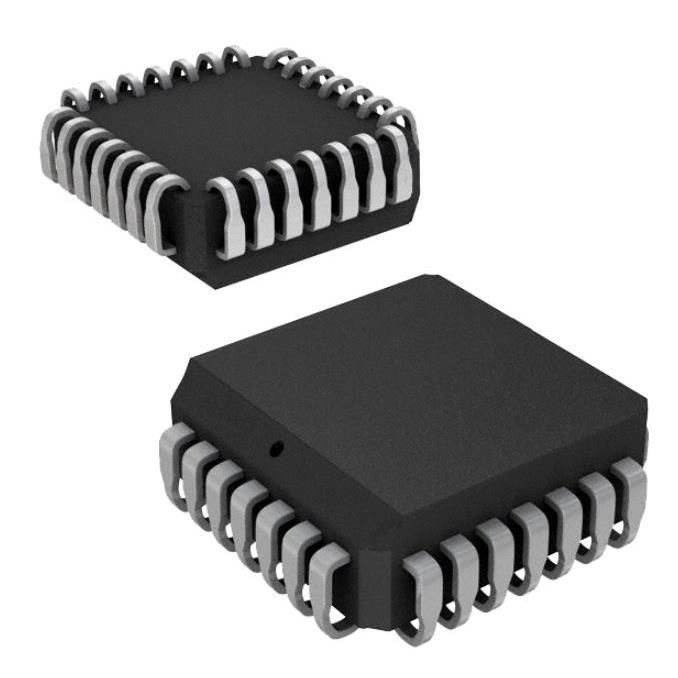

| Component Housing Style | 28-LCC (J-Lead) | |
| Vendor Package Type | 28-PLCC (11.51x11.51) |
Description
Offers off-state channel capacitance of 10pF, 52pF. Ensures ΔRon alignment accuracy defined at 20Ohm. Highlights the maximum off-state leakage (IS(off)) rated at 30pA (Typ). Mounting configuration Surface Mount for structural stability. Mux/demux pathway 16:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 400Ohm for effective conduction. Peak resistance in the on-state 400Ohm for electrical efficiency. Temperature range 0°C ~ 75°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 28-LCC (J-Lead) that offers mechanical and thermal protection. Type of package 28-PLCC (11.51x11.51) that preserves the integrity of the device. Product status Last Time Buy concerning availability and lifecycle. Supplier package type 28-PLCC (11.51x11.51) for component selection. Maximum on/off switching duration Ton/Toff 250ns, 250ns (Typ) for timing accuracy. Dual voltage supply for circuits at V± ±15V.
