Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 82.99000 | ₹ 8,299.00 |
| 25 | ₹ 90.21000 | ₹ 2,255.25 |
| 10 | ₹ 96.20000 | ₹ 962.00 |
| 1 | ₹ 113.08000 | ₹ 113.08 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | DPDT | |
| Signal Mux/Demux Channels | 2:2 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 50Ohm | |
| Inter-Channel Resistance Match | 500mOhm | |
| Single Positive Supply | 2.7V ~ 12V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 25ns, 24ns (Typ) | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | 1.2pC | |
| Off-State Channel Capacitance | 4pF, 6pF | |
| Max Off-State Leakage | 3nA | |
| Signal Interference Level | -85dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

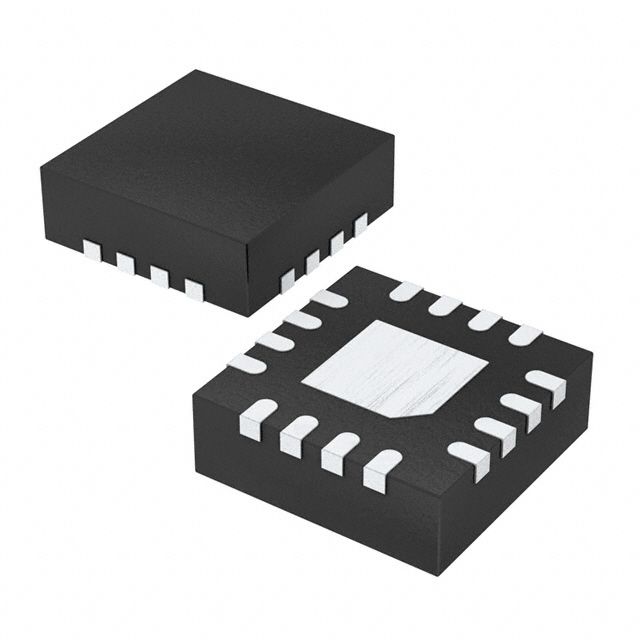

| Component Housing Style | 16-VFQFN Exposed Pad | |
| Vendor Package Type | 16-QFN (3x3) |
Description
Offers off-state channel capacitance of 4pF, 6pF. Ensures ΔRon alignment accuracy defined at 500mOhm. Provides charge injection capability rated at 1.2pC. Minimizes crosstalk with a level of -85dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 3nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:2 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 50Ohm for effective conduction. Peak resistance in the on-state 50Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-QFN (3x3) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-QFN (3x3) for component selection. Circuit switch DPDT for functional operations. Maximum on/off switching duration Ton/Toff 25ns, 24ns (Typ) for timing accuracy. Single voltage supply for electronic devices at V+ 2.7V ~ 12V.
