Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | 4PST - NO | |
| Signal Mux/Demux Channels | - | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 17Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 6.5ns, 6ns | |
| 3dB Bandwidth | 1.3GHz | |
| Charge Transfer Effect | 1.5pC | |
| Off-State Channel Capacitance | 5pF | |
| Max Off-State Leakage | 1nA | |
| Signal Interference Level | -70dB @ 5.5MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

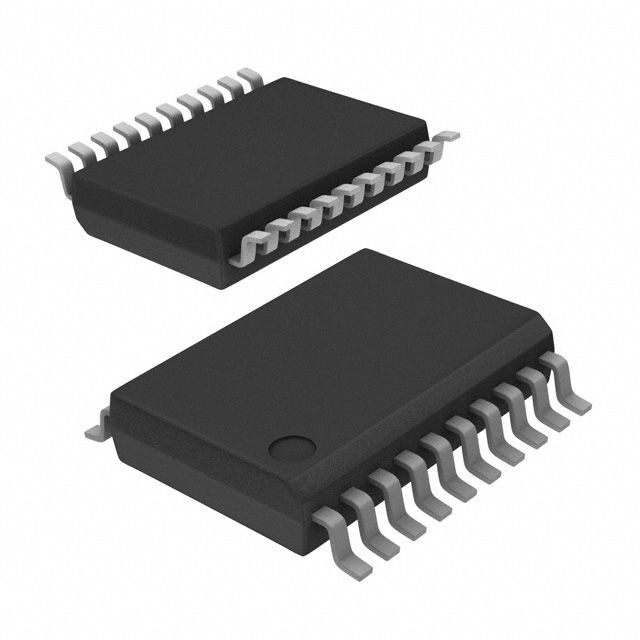

| Component Housing Style | 20-SSOP (0.154", 3.90mm Width) | |
| Vendor Package Type | 20-QSOP |
Description
Delivers a -3dB bandwidth of 1.3GHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF. Provides charge injection capability rated at 1.5pC. Minimizes crosstalk with a level of -70dB @ 5.5MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 1nA. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 17Ohm for effective conduction. Peak resistance in the on-state 17Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 20-SSOP (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 20-QSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 20-QSOP for component selection. Circuit switch 4PST - NO for functional operations. Maximum on/off switching duration Ton/Toff 6.5ns, 6ns for timing accuracy. Single voltage supply for electronic devices at V+ 5V.
