Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 75000 | ₹ 7.08000 | ₹ 5,31,000.00 |
| 30000 | ₹ 7.25000 | ₹ 2,17,500.00 |
| 21000 | ₹ 7.32000 | ₹ 1,53,720.00 |
| 15000 | ₹ 7.40000 | ₹ 1,11,000.00 |
| 9000 | ₹ 7.54000 | ₹ 67,860.00 |
| 6000 | ₹ 7.67000 | ₹ 46,020.00 |
| 3000 | ₹ 7.92000 | ₹ 23,760.00 |
| 1000 | ₹ 8.42000 | ₹ 8,420.00 |
| 500 | ₹ 8.84000 | ₹ 4,420.00 |
| 250 | ₹ 9.33000 | ₹ 2,332.50 |
| 100 | ₹ 10.16000 | ₹ 1,016.00 |
| 25 | ₹ 11.89000 | ₹ 297.25 |
| 10 | ₹ 13.43000 | ₹ 134.30 |
| 1 | ₹ 19.57000 | ₹ 19.57 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Cut Tape (CT) | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT - Open/Closed | |
| Signal Mux/Demux Channels | 1:2 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 7Ohm (Typ) | |
| Inter-Channel Resistance Match | 150mOhm (Typ) | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | -, 3.5ns | |
| 3dB Bandwidth | 350MHz | |
| Charge Transfer Effect | 7pC | |
| Off-State Channel Capacitance | 2.3pF | |
| Max Off-State Leakage | 100nA (Max) | |
| Signal Interference Level | -54dB @ 10MHz | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

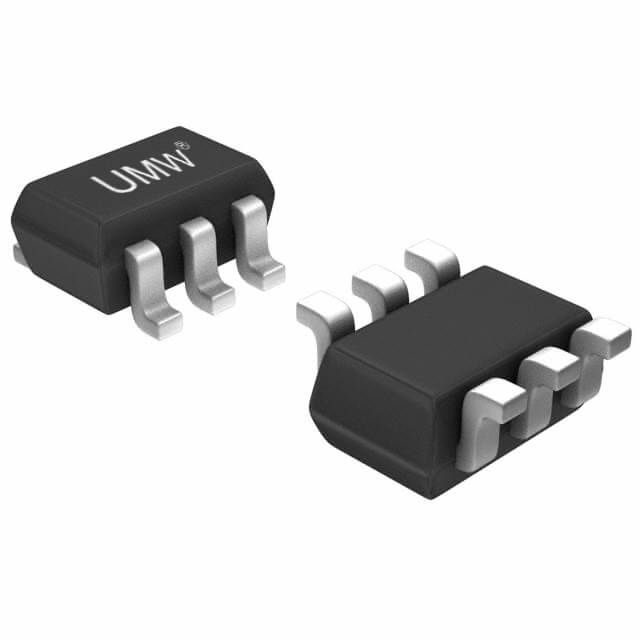

| Component Housing Style | 6-TSSOP, SC-88, SOT-363 | |
| Vendor Package Type | SC-70-6 |
Description
Delivers a -3dB bandwidth of 350MHz to maintain reliable signal quality. Offers off-state channel capacitance of 2.3pF. Ensures ΔRon alignment accuracy defined at 150mOhm (Typ). Provides charge injection capability rated at 7pC. Minimizes crosstalk with a level of -54dB @ 10MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100nA (Max). Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:2 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 7Ohm (Typ) for effective conduction. Peak resistance in the on-state 7Ohm (Typ) for electrical efficiency. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Cut Tape (CT) for safeguarding or transporting components. Style of the enclosure/case 6-TSSOP, SC-88, SOT-363 that offers mechanical and thermal protection. Type of package SC-70-6 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type SC-70-6 for component selection. Circuit switch SPDT - Open/Closed for functional operations. Maximum on/off switching duration Ton/Toff -, 3.5ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
