Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30000 | ₹ 26.00000 | ₹ 7,80,000.00 |
| 21000 | ₹ 26.21000 | ₹ 5,50,410.00 |
| 15000 | ₹ 26.44000 | ₹ 3,96,600.00 |
| 9000 | ₹ 26.83000 | ₹ 2,41,470.00 |
| 6000 | ₹ 27.19000 | ₹ 1,63,140.00 |
| 3000 | ₹ 27.89000 | ₹ 83,670.00 |
| 1000 | ₹ 29.33000 | ₹ 29,330.00 |
| 500 | ₹ 30.49000 | ₹ 15,245.00 |
| 250 | ₹ 31.90000 | ₹ 7,975.00 |
| 100 | ₹ 34.25000 | ₹ 3,425.00 |
| 25 | ₹ 39.16000 | ₹ 979.00 |
| 10 | ₹ 43.58000 | ₹ 435.80 |
| 1 | ₹ 61.94000 | ₹ 61.94 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 45.48000 | ₹ 1,36,440.00 |
| 6000 | ₹ 44.86000 | ₹ 2,69,160.00 |
| 9000 | ₹ 44.23000 | ₹ 3,98,070.00 |
| 12000 | ₹ 44.23000 | ₹ 5,30,760.00 |
| 15000 | ₹ 43.61000 | ₹ 6,54,150.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | DPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 500mOhm | |
| Inter-Channel Resistance Match | 50mOhm | |
| Single Positive Supply | 1.8V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 50µs, 1µs | |
| 3dB Bandwidth | 338MHz | |
| Charge Transfer Effect | -245pC | |
| Off-State Channel Capacitance | - | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | -61dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

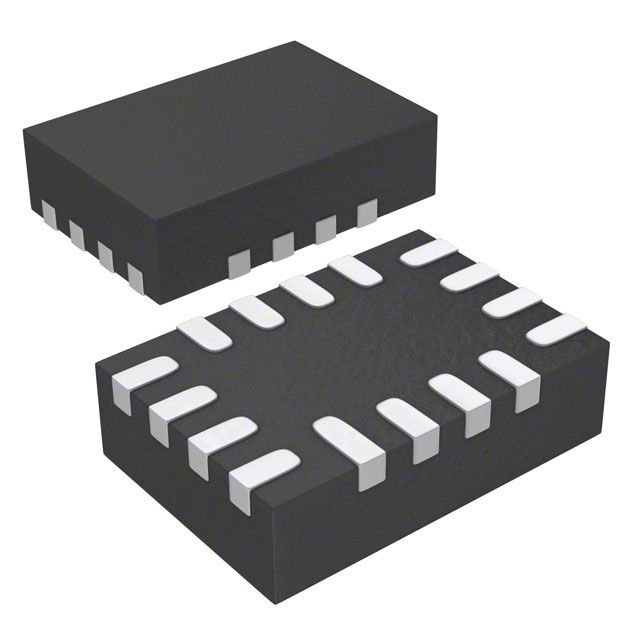

| Component Housing Style | 16-UFQFN | |
| Vendor Package Type | 16-miniQFN (1.8x2.6) |
Description
Delivers a -3dB bandwidth of 338MHz to maintain reliable signal quality. Ensures ΔRon alignment accuracy defined at 50mOhm. Provides charge injection capability rated at -245pC. Minimizes crosstalk with a level of -61dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 500mOhm for effective conduction. Peak resistance in the on-state 500mOhm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-UFQFN that offers mechanical and thermal protection. Type of package 16-miniQFN (1.8x2.6) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-miniQFN (1.8x2.6) for component selection. Circuit switch DPDT for functional operations. Maximum on/off switching duration Ton/Toff 50µs, 1µs for timing accuracy. Single voltage supply for electronic devices at V+ 1.8V ~ 5.5V.
