Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30000 | ₹ 24.44000 | ₹ 7,33,200.00 |
| 21000 | ₹ 24.65000 | ₹ 5,17,650.00 |
| 15000 | ₹ 24.86000 | ₹ 3,72,900.00 |
| 9000 | ₹ 25.24000 | ₹ 2,27,160.00 |
| 6000 | ₹ 25.57000 | ₹ 1,53,420.00 |
| 3000 | ₹ 26.24000 | ₹ 78,720.00 |
| 1000 | ₹ 27.60000 | ₹ 27,600.00 |
| 500 | ₹ 28.71000 | ₹ 14,355.00 |
| 250 | ₹ 30.05000 | ₹ 7,512.50 |
| 100 | ₹ 32.27000 | ₹ 3,227.00 |
| 25 | ₹ 36.94000 | ₹ 923.50 |
| 10 | ₹ 41.19000 | ₹ 411.90 |
| 1 | ₹ 57.83000 | ₹ 57.83 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 1.2Ohm | |
| Inter-Channel Resistance Match | 120mOhm (Max) | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 32ns, 28ns | |
| 3dB Bandwidth | 152MHz | |
| Charge Transfer Effect | -5pC | |
| Off-State Channel Capacitance | - | |
| Max Off-State Leakage | 3nA | |
| Signal Interference Level | -41dB @ 10MHz | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

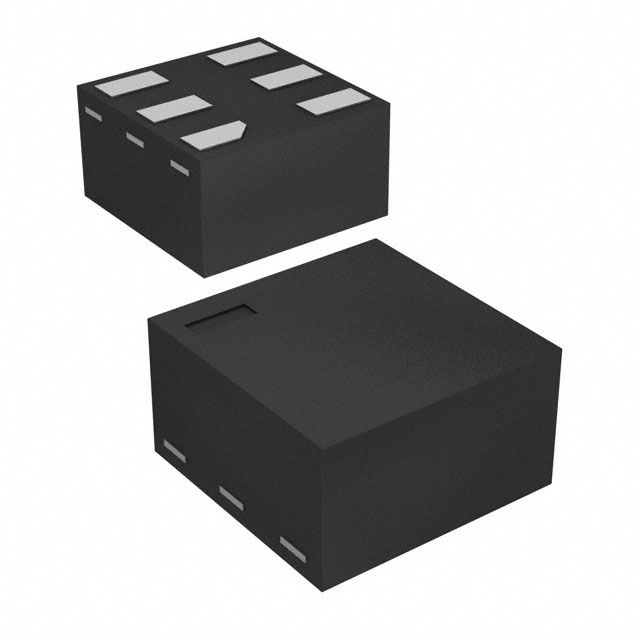

| Component Housing Style | 6-XFDFN | |
| Vendor Package Type | 6-µDFN (1x1) |
Description
Delivers a -3dB bandwidth of 152MHz to maintain reliable signal quality. Ensures ΔRon alignment accuracy defined at 120mOhm (Max). Provides charge injection capability rated at -5pC. Minimizes crosstalk with a level of -41dB @ 10MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 3nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 1.2Ohm for effective conduction. Peak resistance in the on-state 1.2Ohm for electrical efficiency. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 6-XFDFN that offers mechanical and thermal protection. Type of package 6-µDFN (1x1) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 6-µDFN (1x1) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 32ns, 28ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
