Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Strip | |
| Data Bit Width | 24 | |
| Conversion Samples per Second | 16k | |
| Signal Input Quantity | 6 | |
| Entry Signal Category | Differential | |
| Data Link Protocol | I2C | |
| Setup Arrangement | MUX-PGA-ADC | |
| Sample Hold to ADC Ratio | 0:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | Sigma-Delta | |
| Voltage Reference Source | External | |
| Analog Section Voltage | 2.7V ~ 3.6V | |
| Digital Core Voltage | 1.7V ~ 3.6V | |
| Key Product Highlights | PGA | |
| Ambient Temp Range | -40°C ~ 85°C | |

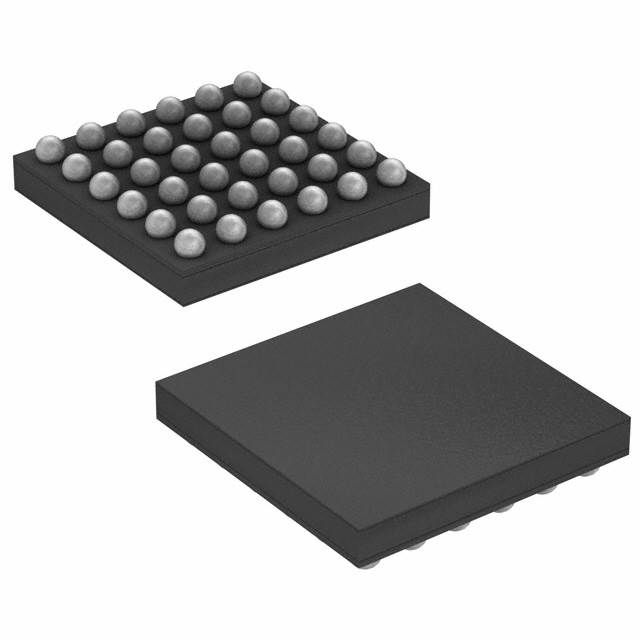

| Component Housing Style | 36-XFBGA, WLBGA | |
| Vendor Package Type | 36-WLP (2.84x2.84) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Sigma-Delta architecture to improve effectiveness. Configured in a manner identified as MUX-PGA-ADC. Operates through a data interface specified at I2C. Equipped with features categorized as PGA. Configured with Differential input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 24 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 6 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Strip for safeguarding or transporting components. Style of the enclosure/case 36-XFBGA, WLBGA that offers mechanical and thermal protection. Type of package 36-WLP (2.84x2.84) that preserves the integrity of the device. Sample/hold to ADC ratio 0:1 for precise circuits. Kind of reference External utilized for component identification. Signal capture rate of 16k. Supplier package type 36-WLP (2.84x2.84) for component selection. Voltage supply 2.7V ~ 3.6V for the analog section of circuits. Voltage supplied to digital components 1.7V ~ 3.6V.
