Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 1,230.42000 | ₹ 1,23,04,200.00 |
| 1000 | ₹ 1,307.19000 | ₹ 13,07,190.00 |
| 500 | ₹ 1,383.95000 | ₹ 6,91,975.00 |
| 100 | ₹ 1,460.71000 | ₹ 1,46,071.00 |
| 25 | ₹ 1,537.47000 | ₹ 38,436.75 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ADC12DS080 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Data Bit Width | 12 | |
| Conversion Samples per Second | 80M | |
| Signal Input Quantity | 2 | |
| Entry Signal Category | Differential | |
| Data Link Protocol | LVDS - Serial | |
| Setup Arrangement | S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 2 | |
| System Design Structure | Pipelined | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 2.7V ~ 3.6V | |
| Digital Core Voltage | 2.7V ~ 3.6V | |
| Key Product Highlights | Simultaneous Sampling | |
| Ambient Temp Range | -40°C ~ 85°C | |

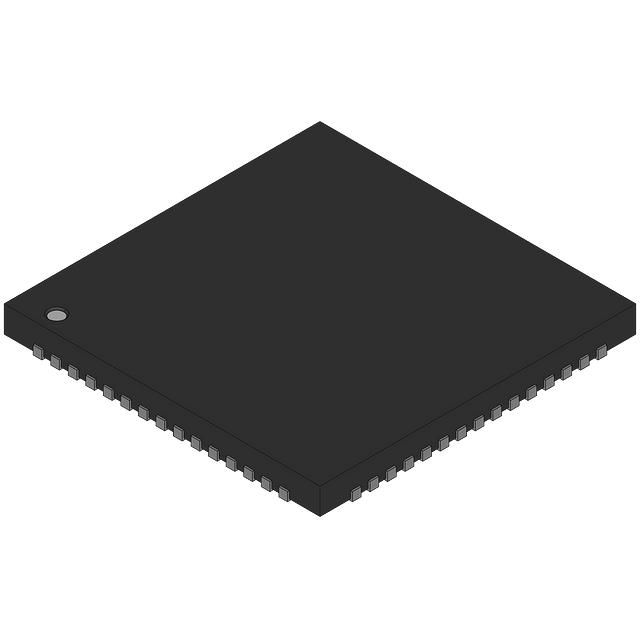

| Component Housing Style | 60-WFQFN Exposed Pad | |
| Vendor Package Type | 60-WQFN (9x9) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Pipelined architecture to improve effectiveness. Configured in a manner identified as S/H-ADC. Operates through a data interface specified at LVDS - Serial. Equipped with features categorized as Simultaneous Sampling. Configured with Differential input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 2 for transforming analog signals into digital. Overall bits 12 ensuring digital precision. The total number of converters is 2 for power or signal transformation. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 60-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 60-WQFN (9x9) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference External, Internal utilized for component identification. Signal capture rate of 80M. Classification series for the product or component ADC12DS080. Supplier package type 60-WQFN (9x9) for component selection. Voltage supply 2.7V ~ 3.6V for the analog section of circuits. Voltage supplied to digital components 2.7V ~ 3.6V.
