Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 3,344.18000 | ₹ 3,34,41,800.00 |
| 1000 | ₹ 3,553.32000 | ₹ 35,53,320.00 |
| 500 | ₹ 3,762.47000 | ₹ 18,81,235.00 |
| 100 | ₹ 3,971.63000 | ₹ 3,97,163.00 |
| 25 | ₹ 4,180.78000 | ₹ 1,04,519.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Data Bit Width | 14 | |
| Conversion Samples per Second | 80M | |
| Signal Input Quantity | 1 | |
| Entry Signal Category | Differential | |
| Data Link Protocol | Parallel | |
| Setup Arrangement | S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | Pipelined | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 2.7V ~ 3.6V | |
| Digital Core Voltage | 2.4V ~ 3.6V | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C | |

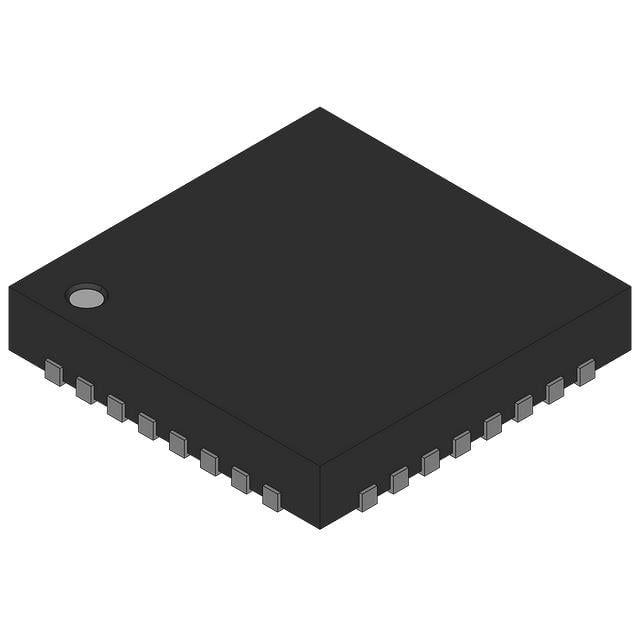

| Component Housing Style | 32-WFQFN Exposed Pad | |
| Vendor Package Type | 32-WQFN (5x5) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Pipelined architecture to improve effectiveness. Configured in a manner identified as S/H-ADC. Operates through a data interface specified at Parallel. Configured with Differential input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 14 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 1 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 32-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 32-WQFN (5x5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference External, Internal utilized for component identification. Signal capture rate of 80M. Supplier package type 32-WQFN (5x5) for component selection. Voltage supply 2.7V ~ 3.6V for the analog section of circuits. Voltage supplied to digital components 2.4V ~ 3.6V.
