Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Data Bit Width | 14 | |
| Digital-to-Analog Converter Count | 1 | |
| Stabilization Time us | 11ns (Typ) | |
| Exit Signal Category | Current - Unbuffered | |
| Balanced Output Signal | Yes | |
| Data Link Protocol | Parallel | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 3.135V ~ 3.465V | |
| Digital Core Voltage | 3.135V ~ 3.465V | |
| Integral Differential Nonlinearity | ±0.8, ±0.5 | |
| System Design Structure | Current Steering | |
| Ambient Temp Range | -40°C ~ 85°C | |

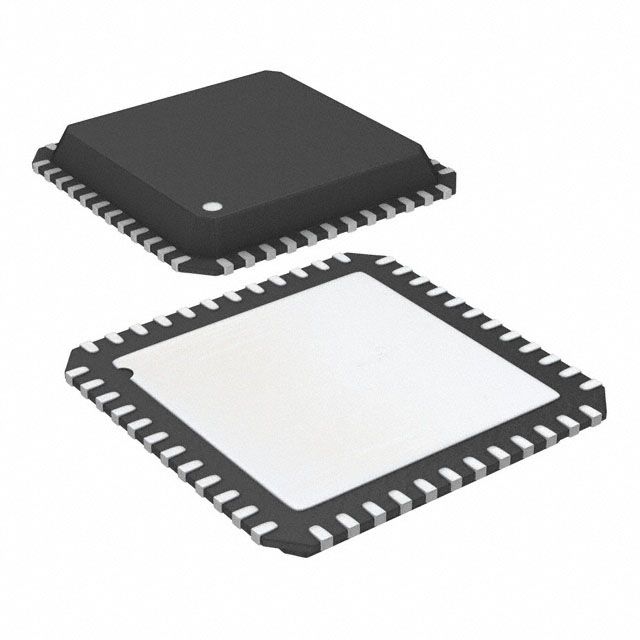

| Component Housing Style | 48-VFQFN Exposed Pad | |
| Vendor Package Type | 48-QFN (7x7) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Current Steering architecture to improve effectiveness. Operates through a data interface specified at Parallel. Features a differential output recorded at Yes. Maintains ±0.8, ±0.5 INL/DNL in LSB for precise ADC functionality. Mounting configuration Surface Mount for structural stability. Overall bits 14 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Total D/A converters 1 utilized for transforming digital signals into analog format. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Current - Unbuffered for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 48-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 48-QFN (7x7) that preserves the integrity of the device. Kind of reference External, Internal utilized for component identification. Duration needed for signal stabilization 11ns (Typ). Supplier package type 48-QFN (7x7) for component selection. Voltage supply 3.135V ~ 3.465V for the analog section of circuits. Voltage supplied to digital components 3.135V ~ 3.465V.
