Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Data Bit Width | 10 | |
| Digital-to-Analog Converter Count | 1 | |
| Stabilization Time us | 15µs | |
| Exit Signal Category | Voltage - Unbuffered | |
| Balanced Output Signal | No | |
| Data Link Protocol | SPI | |
| Voltage Reference Source | External | |
| Analog Section Voltage | 5V | |
| Digital Core Voltage | 5V | |
| Integral Differential Nonlinearity | ±0.5, ±0.25 | |
| System Design Structure | String DAC | |
| Ambient Temp Range | -40°C ~ 85°C | |

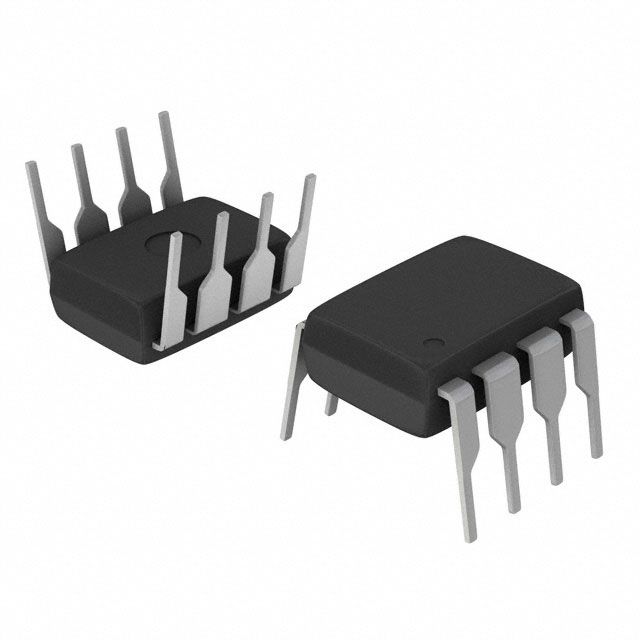

| Component Housing Style | 8-DIP (0.300", 7.62mm) | |
| Vendor Package Type | 8-PDIP | |
| Attachment Mounting Style | Through Hole | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a String DAC architecture to improve effectiveness. Operates through a data interface specified at SPI. Features a differential output recorded at No. Maintains ±0.5, ±0.25 INL/DNL in LSB for precise ADC functionality. Mounting configuration Through Hole for structural stability. Overall bits 10 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Total D/A converters 1 utilized for transforming digital signals into analog format. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Voltage - Unbuffered for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 8-DIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 8-PDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External utilized for component identification. Duration needed for signal stabilization 15µs. Supplier package type 8-PDIP for component selection. Voltage supply 5V for the analog section of circuits. Voltage supplied to digital components 5V.
