Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Data Bit Width | 14 | |
| Digital-to-Analog Converter Count | 2 | |
| Stabilization Time us | 20ns (Typ) | |
| Exit Signal Category | Current - Unbuffered | |
| Balanced Output Signal | Yes | |
| Data Link Protocol | Parallel | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 1.7V ~ 1.9V, 3V ~ 3.6V | |
| Digital Core Voltage | 1.7V ~ 1.9V | |
| Integral Differential Nonlinearity | - | |
| System Design Structure | Binary-Weighted DAC, String DAC | |
| Ambient Temp Range | -40°C ~ 85°C | |

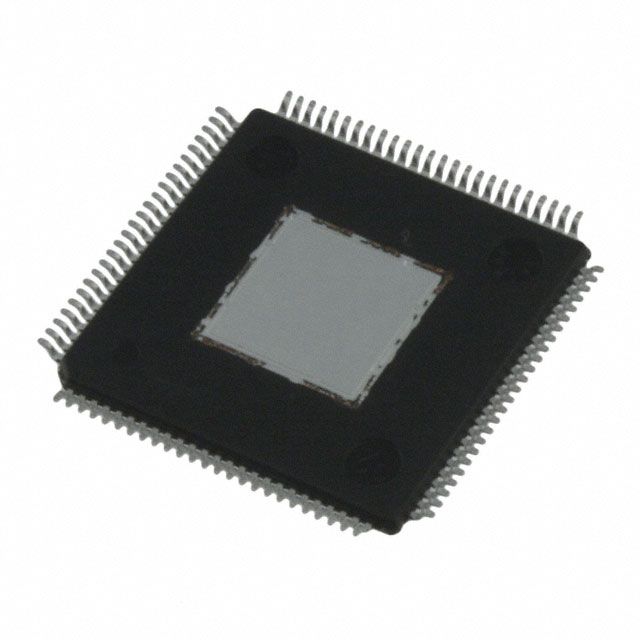

| Component Housing Style | 100-TQFP Exposed Pad | |
| Vendor Package Type | 100-HTQFP (14x14) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Binary-Weighted DAC, String DAC architecture to improve effectiveness. Operates through a data interface specified at Parallel. Features a differential output recorded at Yes. Mounting configuration Surface Mount for structural stability. Overall bits 14 ensuring digital precision. The total number of converters is 2 for power or signal transformation. Total D/A converters 2 utilized for transforming digital signals into analog format. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Current - Unbuffered for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 100-TQFP Exposed Pad that offers mechanical and thermal protection. Type of package 100-HTQFP (14x14) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Kind of reference External, Internal utilized for component identification. Duration needed for signal stabilization 20ns (Typ). Supplier package type 100-HTQFP (14x14) for component selection. Voltage supply 1.7V ~ 1.9V, 3V ~ 3.6V for the analog section of circuits. Voltage supplied to digital components 1.7V ~ 1.9V.
