Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Data Bit Width | 12 | |
| Digital-to-Analog Converter Count | 8 | |
| Stabilization Time us | 7µs | |
| Exit Signal Category | Voltage - Buffered | |
| Balanced Output Signal | No | |
| Data Link Protocol | SPI | |
| Voltage Reference Source | External | |
| Analog Section Voltage | 2.7V ~ 3.3V, 5V | |
| Digital Core Voltage | 2.7V ~ 3.3V, 5V | |
| Integral Differential Nonlinearity | ±2, ±0.5 | |
| System Design Structure | String DAC | |
| Ambient Temp Range | -40°C ~ 85°C | |

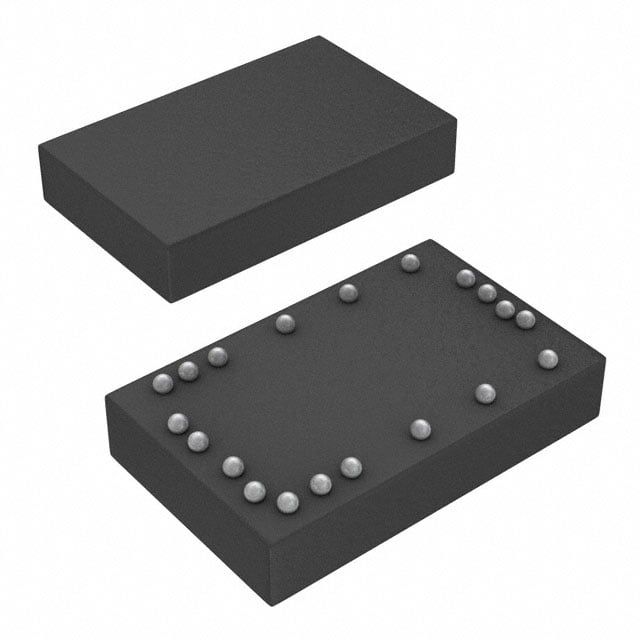

| Component Housing Style | 20-WFBGA, DSBGA | |
| Vendor Package Type | 20-DSBGA | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a String DAC architecture to improve effectiveness. Operates through a data interface specified at SPI. Features a differential output recorded at No. Maintains ±2, ±0.5 INL/DNL in LSB for precise ADC functionality. Mounting configuration Surface Mount for structural stability. Overall bits 12 ensuring digital precision. The total number of converters is 8 for power or signal transformation. Total D/A converters 8 utilized for transforming digital signals into analog format. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Voltage - Buffered for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 20-WFBGA, DSBGA that offers mechanical and thermal protection. Type of package 20-DSBGA that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External utilized for component identification. Duration needed for signal stabilization 7µs. Supplier package type 20-DSBGA for component selection. Voltage supply 2.7V ~ 3.3V, 5V for the analog section of circuits. Voltage supplied to digital components 2.7V ~ 3.3V, 5V.
