Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 114.92000 | ₹ 3,44,760.00 |
| 1000 | ₹ 117.90000 | ₹ 1,17,900.00 |
| 500 | ₹ 121.57000 | ₹ 60,785.00 |
| 250 | ₹ 126.02000 | ₹ 31,505.00 |
| 100 | ₹ 133.41000 | ₹ 13,341.00 |
| 25 | ₹ 148.90000 | ₹ 3,722.50 |
| 10 | ₹ 163.02000 | ₹ 1,630.20 |
| 1 | ₹ 219.38000 | ₹ 219.38 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Load Drive Setup | Low-Side | |
| Signal Path Design | Independent | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 4.75V ~ 5.25V | |
| Logic Low/High Voltage | - | |
| Peak Source/Sink Output | 7A, 5A | |
| Entry Signal Category | Inverting, Non-Inverting | |
| Max Bootstrap High Voltage | - | |
| Typical Edge Transition Time | 450ps, 450ps | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

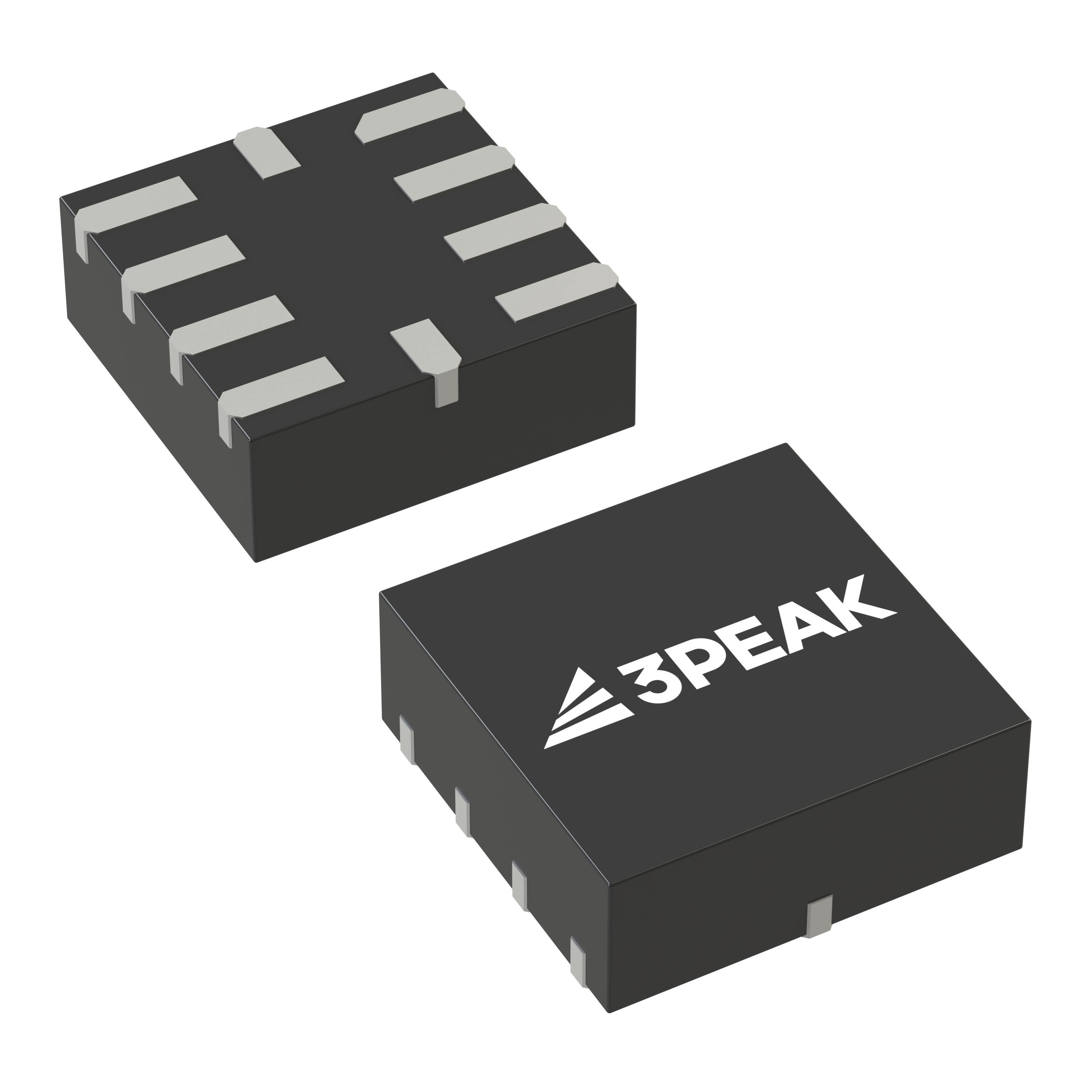

| Component Housing Style | 10-WFQFN | |
| Vendor Package Type | 10-QFN (2x2) |
Description
Organized by channel type referred to as Independent. Facilitates peak sourcing and sinking currents of 7A, 5A. Implements the driven arrangement described as Low-Side. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Configured with Inverting, Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 10-WFQFN that offers mechanical and thermal protection. Type of package 10-QFN (2x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 450ps, 450ps for signal transitions. Supplier package type 10-QFN (2x2) for component selection. Voltage requirement 4.75V ~ 5.25V for electrical specifications. Voltage supply 4.75V ~ 5.25V for device operation.
