Description

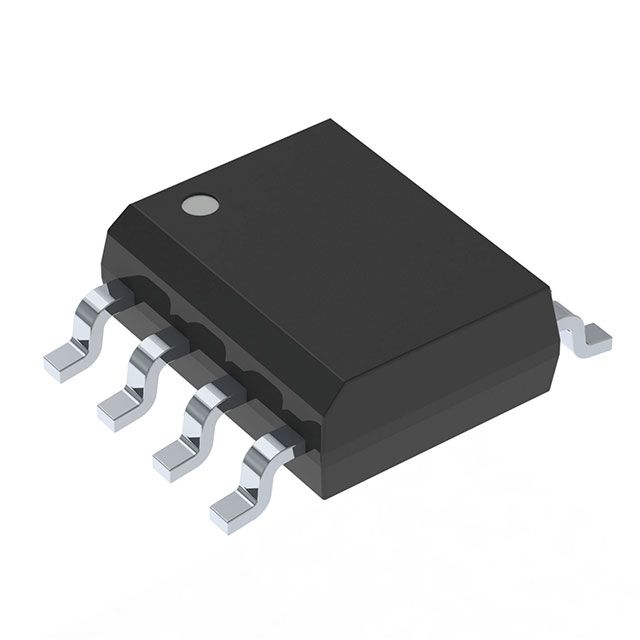

Organized by channel type referred to as Synchronous. Facilitates a maximum output current level set as 1.1V, 1.7V. Facilitates peak sourcing and sinking currents of 2.5A, 2.5A. Implements the driven arrangement described as Half-Bridge. Features IGBT, MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 650 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 1.1V, 1.7V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 1 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package PG-DSO-8-69 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 15ns, 15ns for signal transitions. Supplier package type PG-DSO-8-69 for component selection. Voltage requirement 10V ~ 20V for electrical specifications. Voltage supply 10V ~ 20V for device operation.
