Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Independent | |
| Output Driver Count | 2 | |
| Logic Gate Category | IGBT, MOSFET (N-Channel) | |
| Power Supply Voltage | 3.3V ~ 20V | |
| Logic Low/High Voltage | 6V, 9.5V | |
| Peak Source/Sink Output | 2A, 2A | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | 600 V | |
| Typical Edge Transition Time | 25ns, 17ns | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

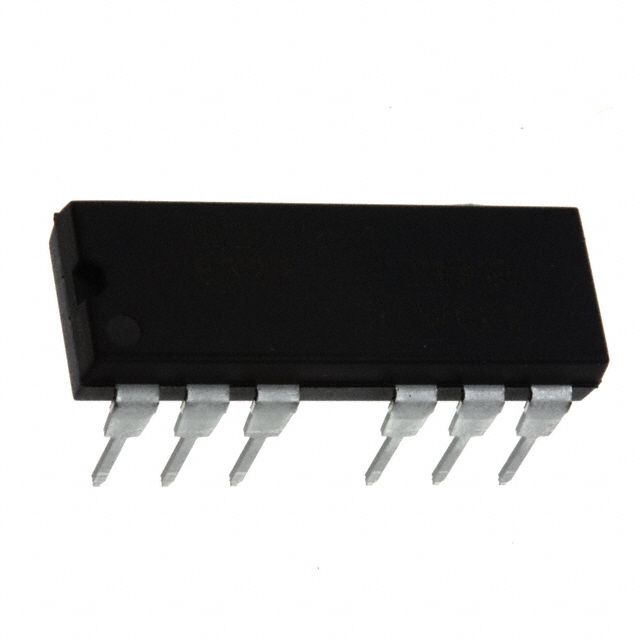

| Component Housing Style | 14-DIP (0.300", 7.62mm), 13 Leads | |
| Vendor Package Type | 14-PDIP |
Description
Organized by channel type referred to as Independent. Facilitates a maximum output current level set as 6V, 9.5V. Facilitates peak sourcing and sinking currents of 2A, 2A. Implements the driven arrangement described as Half-Bridge. Features IGBT, MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 600 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 6V, 9.5V required to meet digital input/output standards. Mounting configuration Through Hole for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-DIP (0.300", 7.62mm), 13 Leads that offers mechanical and thermal protection. Type of package 14-PDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Typical rise and fall duration 25ns, 17ns for signal transitions. Supplier package type 14-PDIP for component selection. Voltage requirement 3.3V ~ 20V for electrical specifications. Voltage supply 3.3V ~ 20V for device operation.
