Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 487.63000 | ₹ 4,87,630.00 |
| 500 | ₹ 499.37000 | ₹ 2,49,685.00 |
| 250 | ₹ 513.62000 | ₹ 1,28,405.00 |
| 100 | ₹ 537.28000 | ₹ 53,728.00 |
| 50 | ₹ 559.68000 | ₹ 27,984.00 |
| 10 | ₹ 632.03000 | ₹ 6,320.30 |
| 1 | ₹ 812.44000 | ₹ 812.44 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Load Drive Setup | Low-Side | |
| Signal Path Design | Single | |
| Output Driver Count | 1 | |
| Logic Gate Category | IGBT, MOSFET (N-Channel, P-Channel) | |
| Power Supply Voltage | 9V ~ 35V | |
| Logic Low/High Voltage | 0.8V, 3.5V | |
| Peak Source/Sink Output | 30A, 30A | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | - | |
| Typical Edge Transition Time | 11ns, 11ns | |
| Ambient Temp Range | -55°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

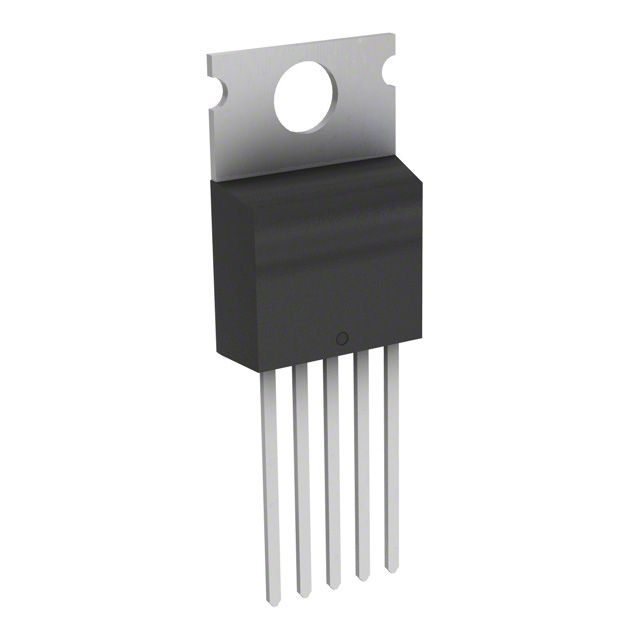

| Component Housing Style | TO-220-5 | |
| Vendor Package Type | TO-220-5 |
Description
Organized by channel type referred to as Single. Facilitates a maximum output current level set as 0.8V, 3.5V. Facilitates peak sourcing and sinking currents of 30A, 30A. Implements the driven arrangement described as Low-Side. Features IGBT, MOSFET (N-Channel, P-Channel) gate type suitable for efficient transistor control. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 0.8V, 3.5V required to meet digital input/output standards. Mounting configuration Through Hole for structural stability. Total drivers 1 responsible for managing circuits or systems. Temperature range -55°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-220-5 that offers mechanical and thermal protection. Type of package TO-220-5 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 11ns, 11ns for signal transitions. Supplier package type TO-220-5 for component selection. Voltage requirement 9V ~ 35V for electrical specifications. Voltage supply 9V ~ 35V for device operation.
