Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Signal Translator Category | Voltage Level | |
| Signal Path Design | Bidirectional | |
| Electrical Circuit Count | 1 | |
| Circuits per Signal Line | 4 | |
| Analog Supply A Voltage | 1.35 V ~ 3.2 V | |
| Digital Supply B Voltage | 2.2 V ~ 3.6 V | |
| Incoming Signal Format | - | |
| Processed Signal Type | - | |
| Exit Signal Category | Open Drain, Push-Pull | |
| Transfer Speed Mbps | 100Mbps | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Key Product Highlights | Auto-Direction Sensing | |
| Attachment Mounting Style | Surface Mount | |

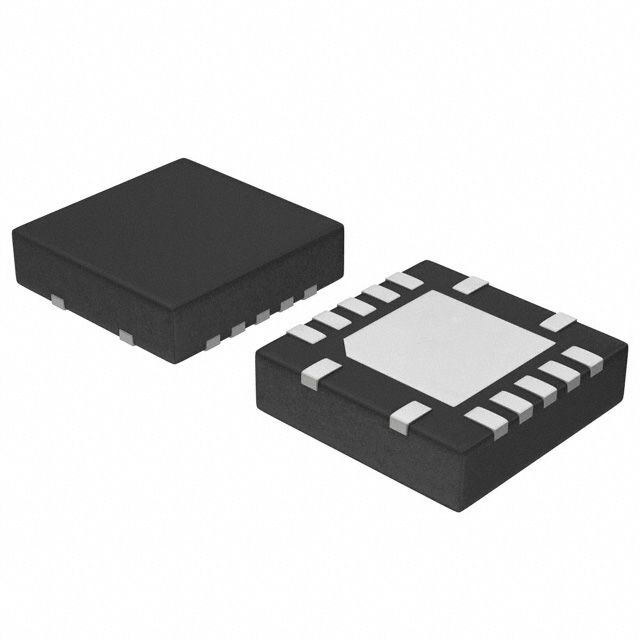

| Component Housing Style | 14-VFQFN Exposed Pad | |
| Vendor Package Type | 14-QFN (3.5x3.5) |
Description
Organized by channel type referred to as Bidirectional. Features 4 channels for every circuit to enhance routing. Delivers a data transfer rate measured at 100Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 100Mbps. Equipped with features categorized as Auto-Direction Sensing. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type Open Drain, Push-Pull for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 14-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 14-QFN (3.5x3.5) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 14-QFN (3.5x3.5) for component selection. Category of translator Voltage Level for signal or protocol conversion. VCCA level 1.35 V ~ 3.2 V in systems that use dual power supplies. VCCB level 2.2 V ~ 3.6 V in setups with dual power sources.
