Description

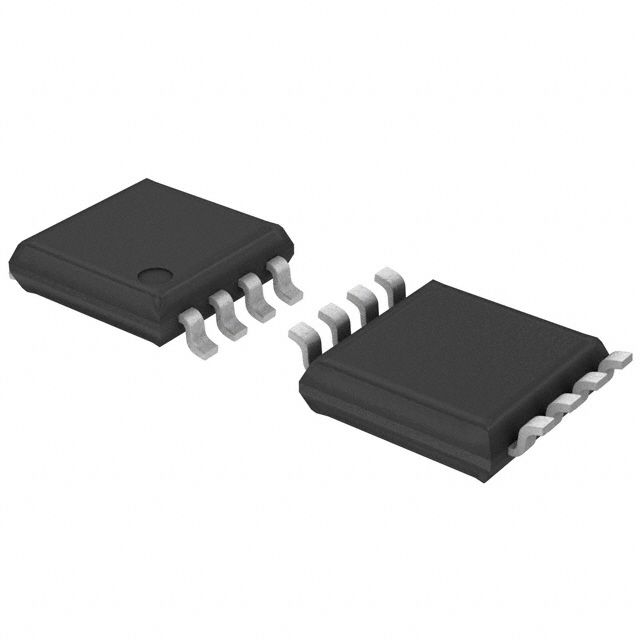

Facilitates a maximum output current level set as 5.2mA, 5.2mA. Offers information on high and low output current settings at 5.2mA, 5.2mA. Provides maximum quiescent current of 20 µA. The high logic threshold defined at 1.5V ~ 4.2V for detecting digital circuits. The low logic threshold indicated at 0.5V ~ 1.8V for accurate digital input detection. The type of logic NAND Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 7ns @ 6V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 2 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) that offers mechanical and thermal protection. Type of package 8-TSSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74HC. Dimensions of the shell NAND Gate for connectors or enclosures. Supplier package type 8-TSSOP for component selection. Voltage requirement 2V ~ 6V for electrical specifications. Voltage supply 2V ~ 6V for device operation.
