Description

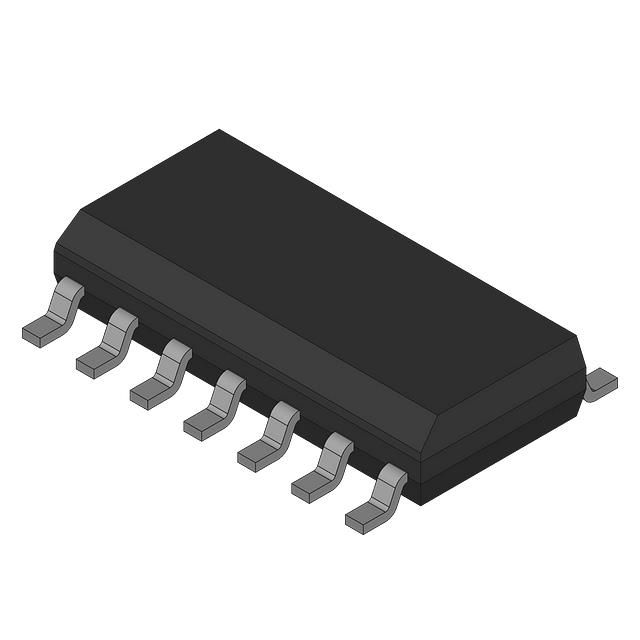

Facilitates a maximum output current level set as 4mA, 4mA. Offers information on high and low output current settings at 4mA, 4mA. Provides maximum quiescent current of 2 µA. Equipped with features categorized as Schmitt Trigger. Evaluated as Automotive grade for quality control. The high logic threshold defined at 1.9V ~ 2.1V for detecting digital circuits. The low logic threshold indicated at 0.5V ~ 0.6V for accurate digital input detection. The type of logic NAND Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 33ns @ 4.5V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 4 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 14-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Classification series for the product or component 74HCT. Dimensions of the shell NAND Gate for connectors or enclosures. Supplier package type 14-SO for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Voltage supply 4.5V ~ 5.5V for device operation.
