Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | OPTIREG™ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Output Setup Options | Positive | |
| Exit Signal Category | Fixed | |
| Voltage Regulator Count | 1 | |
| Maximum Input Voltage | 42V | |
| Minimum Fixed Output | 5V | |
| Peak Output Voltage | - | |
| Maximum Dropout Voltage | 0.7V @ 550mA | |
| Output Delivery Amps | 650mA | |
| Standby Current Draw | 1.5 mA | |
| Maximum Supply Current | 90 mA | |
| Power Supply Rejection Ratio | 54dB (100Hz) | |
| Adjustment Capabilities | Reset | |
| Built-In Safeguards | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage | |
| Ambient Temp Range | -40°C ~ 150°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Through Hole | |

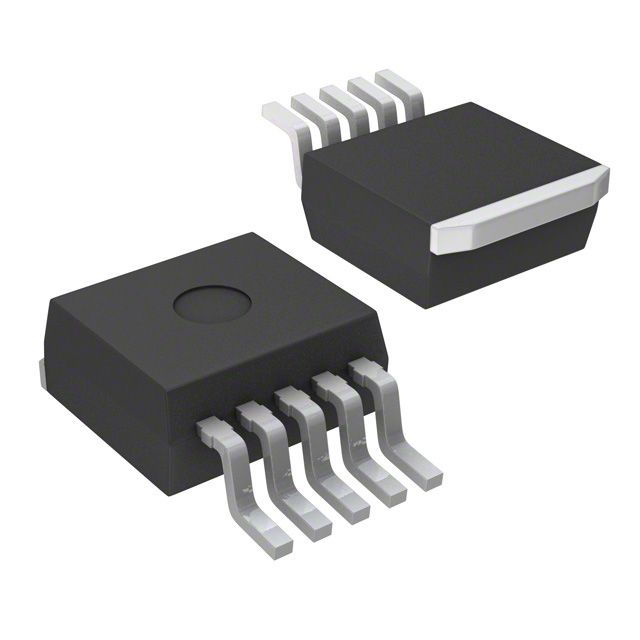

| Component Housing Style | TO-220-5 Formed Leads | |
| Vendor Package Type | PG-TO220-5 |
Description
Is equipped with control features recognized as Reset. Yields output current measured at 650mA. Accommodates quiescent current Iq rated at 1.5 mA. Manages the maximum supply current noted as 90 mA. Evaluated as Automotive grade for quality control. The input voltage established at 42V for reliable performance. Mounting configuration Through Hole for structural stability. Overall number of regulators 1 for voltage or current management. Temperature range -40°C ~ 150°C for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Type Fixed for ensuring compatibility with output systems. Indicator of power supply rejection 54dB (100Hz) to maintain voltage stability. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-220-5 Formed Leads that offers mechanical and thermal protection. Type of package PG-TO220-5 that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Integrated safety features Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage for reliability and compliance. Certification AEC-Q100 for compliance with testing or regulatory standards. Classification series for the product or component OPTIREG™. Supplier package type PG-TO220-5 for component selection. Maximum input voltage 42V for safeguarding. The lowest or steady output voltage 5V for circuits. Maximum dropout voltage 0.7V @ 550mA for voltage regulation systems.
