Stock:
Distributor: 145
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 21 | ₹ 1,499.51000 | ₹ 31,489.71 |
| 16 | ₹ 1,672.53000 | ₹ 26,760.48 |
| 12 | ₹ 1,730.20000 | ₹ 20,762.40 |
| 9 | ₹ 1,787.88000 | ₹ 16,090.92 |
| 6 | ₹ 1,845.54000 | ₹ 11,073.24 |
| 3 | ₹ 2,249.25000 | ₹ 6,747.75 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SAMA5D2 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Central CPU Unit | ARM® Cortex®-A5 | |
| Bus Core Width Bits | 1 Core, 32-Bit | |
| Operational Speed Rating | 500MHz | |
| Digital Signal Processors | Multimedia; NEON™ MPE | |
| Memory Management Units | LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI | |
| GPU Speed Enhancement | Yes | |
| Screen and UI Processors | Keyboard, LCD, Touchscreen | |
| Network Ethernet Standard | 10/100Mbps (1) | |
| Serial ATA Interface | - | |
| USB Interface Version | USB 2.0 + HSIC | |
| Input/Output Voltage Level | 3.3V | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Data Protection Measures | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | |
| Attachment Mounting Style | Surface Mount | |

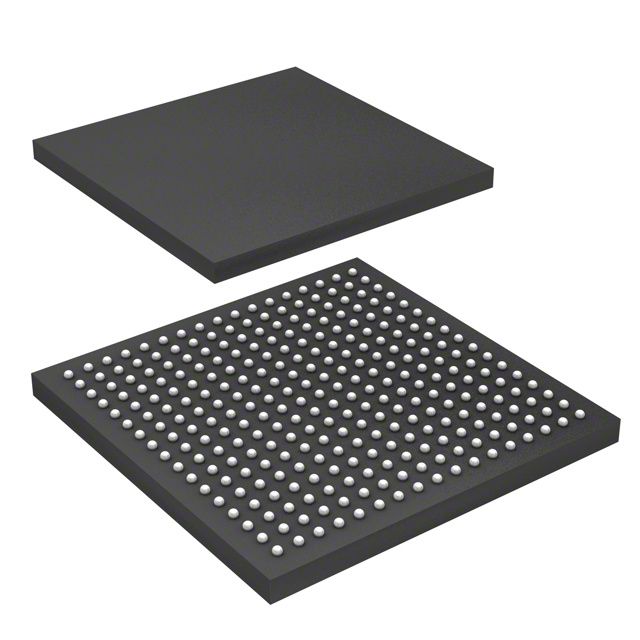

| Component Housing Style | 289-TFBGA | |
| Vendor Package Type | 289-TFBGA (14x14) | |
| Extra Connectivity Ports | I2C, SMC, SPI, UART, USART, QSPI |
Description
Provides extra interface options rated at I2C, SMC, SPI, UART, USART, QSPI to improve functionality. Includes co-processing or DSP components classified as Multimedia; NEON™ MPE. Includes the core processor identified as ARM® Cortex®-A5 for swift processing. Incorporates display and user interface processors noted as Keyboard, LCD, Touchscreen. Conforms to the Ethernet standard specified at 10/100Mbps (1). Offers a Yes boost in graphics for fluid visual performance. Mounting configuration Surface Mount for structural stability. The width of the bus or cores is 1 Core, 32-Bit for digital uses. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Voltage 3.3V for optimal output electric potential. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 289-TFBGA that offers mechanical and thermal protection. Type of package 289-TFBGA (14x14) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Units that control RAM LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI for effective memory management. Security features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC for device protection. Classification series for the product or component SAMA5D2. Operational speed 500MHz for mechanical or data tasks. Supplier package type 289-TFBGA (14x14) for component selection. Version of USB USB 2.0 + HSIC for connectivity. Input/output voltage level 3.3V for digital systems.
