Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | Multiphase | |
| AC/DC Motor Classification | Brushless DC (BLDC), PMSM, Stepper | |
| Primary Function Mode | Driver - Fully Integrated, Control and Power Stage | |
| Output Setup Options | High Side, Low Side | |
| User Interface Type | SPI, UART | |
| Core Technology Platform | CMOS | |
| Precision Step Size | - | |
| Intended Uses | Industrial | |
| Output Delivery Amps | 8mA | |
| Power Supply Voltage | 3.15V ~ 3.45V | |
| Output Load Voltage | 1.2V, 3.3V | |
| Ambient Temp Range | -40°C ~ 100°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

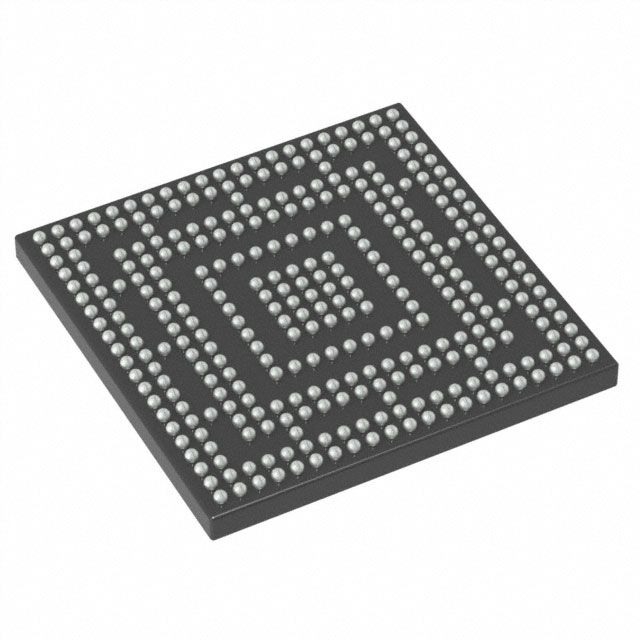

| Component Housing Style | 325-TFBGA | |
| Vendor Package Type | 325-BGA (11x11) |
Description
Perfectly designed for situations involving Industrial. Yields output current measured at 8mA. Engineered with Driver - Fully Integrated, Control and Power Stage features for versatile component usage. Designed for SPI, UART ease of use and user interaction. Classification of AC/DC motor Brushless DC (BLDC), PMSM, Stepper for power compatibility. Type of stepper motor Multiphase for precise motion control. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 100°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side, Low Side for establishing system output configurations. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 325-TFBGA that offers mechanical and thermal protection. Type of package 325-BGA (11x11) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 325-BGA (11x11) for component selection. Voltage requirement 3.15V ~ 3.45V for electrical specifications. The primary technology platform CMOS linked to the product category. Load voltage 1.2V, 3.3V required for devices. Voltage supply 3.15V ~ 3.45V for device operation.
