Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SPT® | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | - | |
| AC/DC Motor Classification | Brushed DC | |
| Primary Function Mode | Driver - Fully Integrated, Control and Power Stage | |
| Output Setup Options | Half Bridge (2) | |
| User Interface Type | Parallel | |
| Core Technology Platform | DMOS | |
| Precision Step Size | - | |
| Intended Uses | - | |
| Output Delivery Amps | 5A | |
| Power Supply Voltage | 5.3V ~ 40V | |
| Output Load Voltage | 5.3V ~ 40V | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

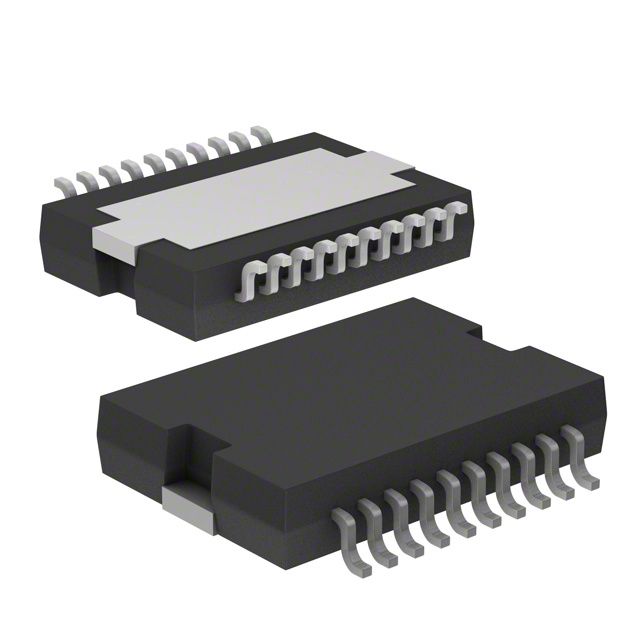

| Component Housing Style | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | |
| Vendor Package Type | PG-DSO-20-37 |
Description
Yields output current measured at 5A. Engineered with Driver - Fully Integrated, Control and Power Stage features for versatile component usage. Evaluated as Automotive grade for quality control. Designed for Parallel ease of use and user interaction. Classification of AC/DC motor Brushed DC for power compatibility. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Half Bridge (2) for establishing system output configurations. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 20-SOIC (0.433", 11.00mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package PG-DSO-20-37 that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component SPT®. Supplier package type PG-DSO-20-37 for component selection. Voltage requirement 5.3V ~ 40V for electrical specifications. The primary technology platform DMOS linked to the product category. Load voltage 5.3V ~ 40V required for devices. Voltage supply 5.3V ~ 40V for device operation.
