Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 274.68000 | ₹ 274.68 |
| 10 | ₹ 258.63000 | ₹ 2,586.30 |
| 25 | ₹ 242.58000 | ₹ 6,064.50 |
| 50 | ₹ 226.52000 | ₹ 11,326.00 |
| 100 | ₹ 218.05000 | ₹ 21,805.00 |
| 250 | ₹ 209.58000 | ₹ 52,395.00 |
| 500 | ₹ 201.10000 | ₹ 1,00,550.00 |
| 1000 | ₹ 192.63000 | ₹ 1,92,630.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TOPSwitch®-HX | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Output Electrical Isolation | Isolated | |
| Embedded Toggle Switches | Yes | |
| Breakdown Voltage Point | 700V | |
| Circuit Topology Design | Flyback | |
| Startup Voltage Threshold | - | |
| Core Supply Voltage | - | |
| On-Off Ratio | 78% | |
| Switching Cycle Rate | 66kHz, 132kHz | |
| Wattage Power Level | 333 W | |
| Error Safeguard Features | Current Limiting, Over Temperature, Over Voltage | |
| Adjustment Capabilities | - | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

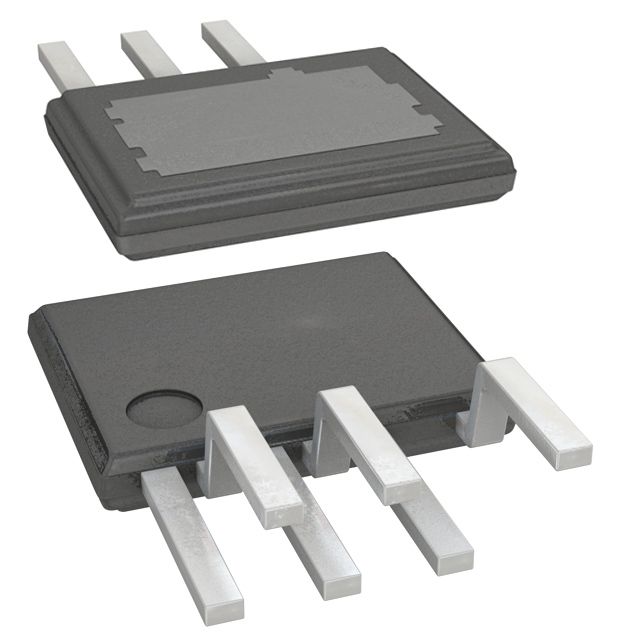

| Component Housing Style | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | |
| Vendor Package Type | eSIP-7C | |
| Attachment Mounting Style | Through Hole |
Description
Shows the duty cycle represented as 78%. Features fault protection capabilities quantified at Current Limiting, Over Temperature, Over Voltage. Engineered for a 66kHz, 132kHz switching frequency ideal for high-speed electronic uses. Fitted with Yes internal switch(es) for reliable control. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Safeguard Isolated for maintaining output integrity and signal fidelity. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 7-SSIP, 6 Leads, Exposed Pad, Formed Leads that offers mechanical and thermal protection. Type of package eSIP-7C that preserves the integrity of the device. Power measured in watts 333 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component TOPSwitch®-HX. Supplier package type eSIP-7C for component selection. Layout design Flyback for electrical systems or configurations. The breakdown voltage threshold 700V for component criteria.
