Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Output Electrical Isolation | Isolated | |
| Embedded Toggle Switches | Yes | |
| Breakdown Voltage Point | 800V | |
| Circuit Topology Design | Flyback | |
| Startup Voltage Threshold | - | |
| Core Supply Voltage | 85V ~ 264V | |
| On-Off Ratio | - | |
| Switching Cycle Rate | 72kHz | |
| Wattage Power Level | 10 W | |
| Error Safeguard Features | Over Temperature | |
| Adjustment Capabilities | - | |
| Ambient Temp Range | 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

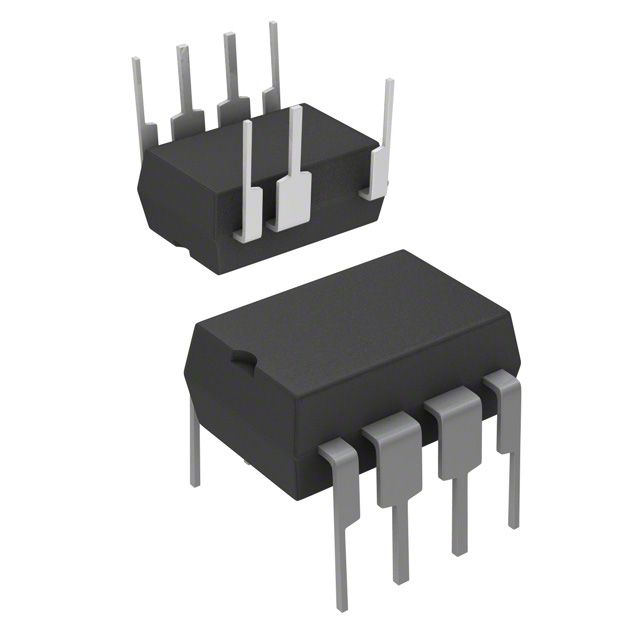

| Component Housing Style | 8-DIP (0.300", 7.62mm), 7 Leads | |
| Vendor Package Type | 7-PDIP | |
| Attachment Mounting Style | Through Hole |
Description
Features fault protection capabilities quantified at Over Temperature. Engineered for a 72kHz switching frequency ideal for high-speed electronic uses. Fitted with Yes internal switch(es) for reliable control. Mounting configuration Through Hole for structural stability. Temperature range 150°C (TJ) for environmental conditions impacting thermal efficiency. Safeguard Isolated for maintaining output integrity and signal fidelity. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 8-DIP (0.300", 7.62mm), 7 Leads that offers mechanical and thermal protection. Type of package 7-PDIP that preserves the integrity of the device. Power measured in watts 10 W for optimal operation. Product status Active concerning availability and lifecycle. Supplier package type 7-PDIP for component selection. Voltage requirement 85V ~ 264V for electrical specifications. Layout design Flyback for electrical systems or configurations. The breakdown voltage threshold 800V for component criteria. Vcc/Vdd voltage supply 85V ~ 264V for electronic devices.
