Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | High Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | On/Off | |
| Output Load Voltage | 6V ~ 28V | |
| Core Supply Voltage | Not Required | |
| Peak Output Current | 2.3A | |
| Typical On Resistance | 110mOhm | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | Auto Restart | |
| Error Safeguard Features | Current Limiting (Fixed), Open Load Detect, Over Temperature | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

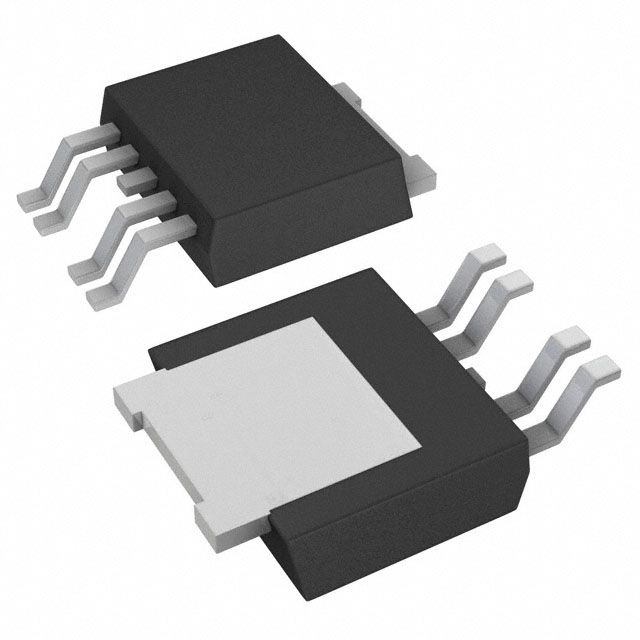

| Vendor Package Type | DPAK-5 | |
| Component Housing Style | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
Description
Supplies peak output current defined as 2.3A. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature. Equipped with features categorized as Auto Restart. Evaluated as Automotive grade for quality control. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 110mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case TO-252-5, DPAK (4 Leads + Tab), TO-252AD that offers mechanical and thermal protection. Type of package DPAK-5 that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 110mOhm for MOSFET functionality. Supplier package type DPAK-5 for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 6V ~ 28V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
