Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 4 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | High Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | On/Off | |
| Output Load Voltage | 5V ~ 36V | |
| Core Supply Voltage | Not Required | |
| Peak Output Current | 1A | |
| Typical On Resistance | 200mOhm | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | - | |
| Error Safeguard Features | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | PG-SSOP-24-14-EP | |

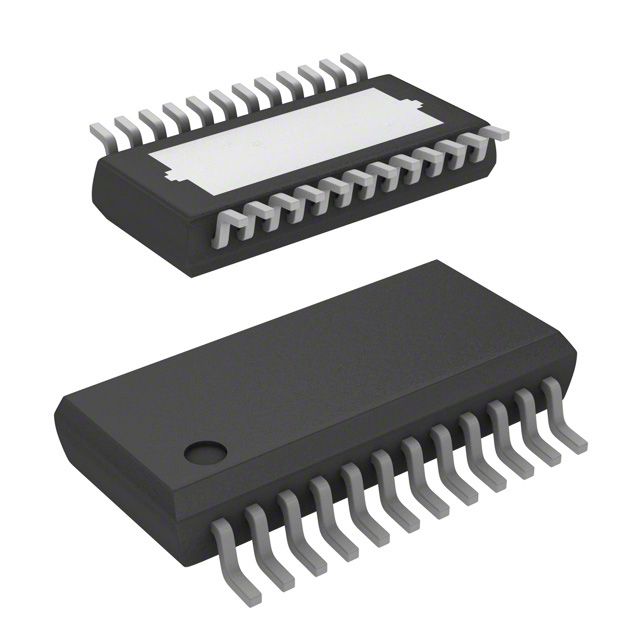

| Component Housing Style | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
Description
Supplies peak output current defined as 1A. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 4 for device connections. Resistance during the on-state 200mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package PG-SSOP-24-14-EP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 200mOhm for MOSFET functionality. Supplier package type PG-SSOP-24-14-EP for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 5V ~ 36V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
